ENGLISH
Jandy
®
, JXi
™
Gas-Fired Pool & Spa Heater
|
Installation & Operation Manual

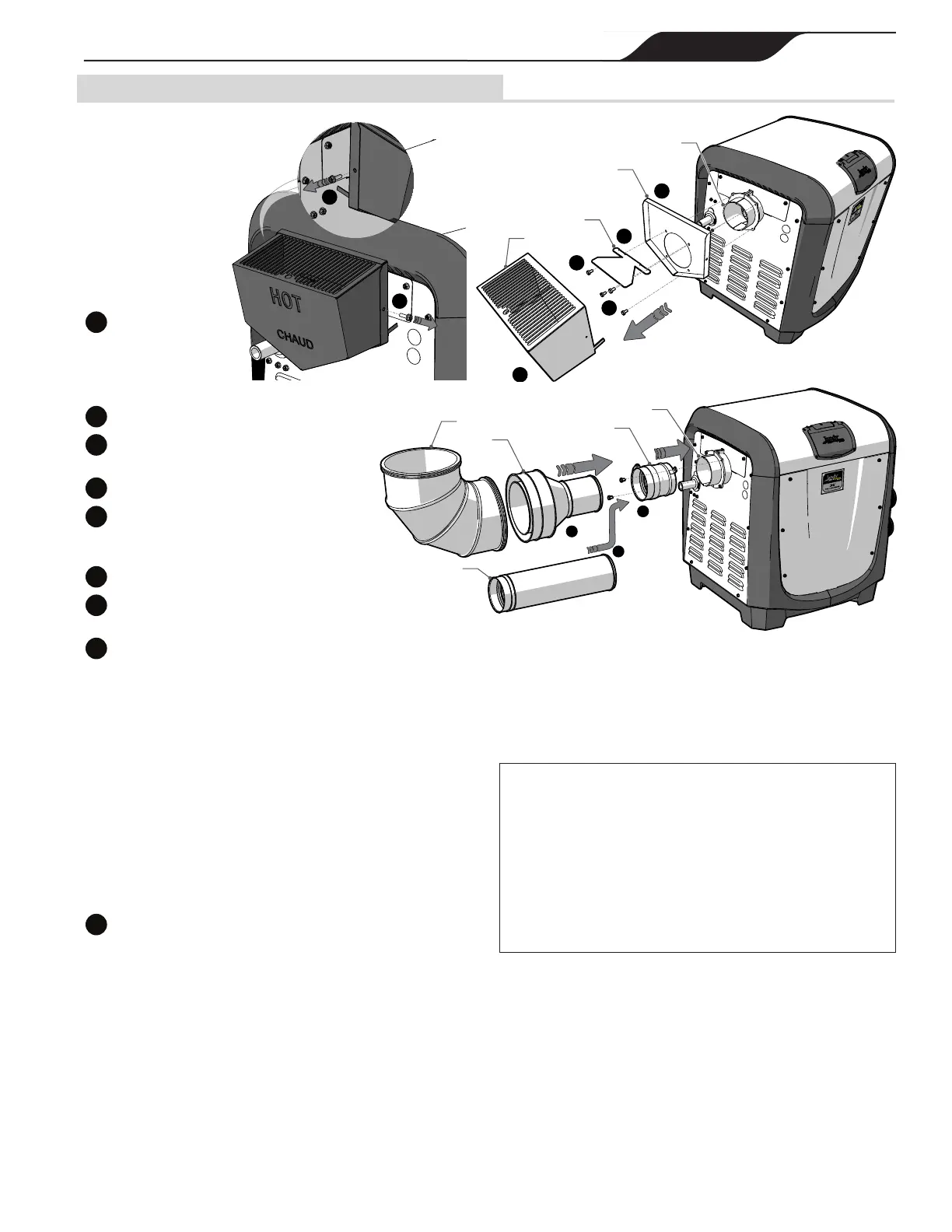

4.3.5 Indoor and Outdoor Shelter Exhaust Conversion
For both Category
I and Category
III vent types the
heater must rst
be converted to an
indoor exhaust type.
In order to complete
the conversion you
will need to order
exhaust conversion
R-Kit R0731100.
a
Remove two
screws securing
the exhaust grill
to the exhaust grill
backplate.
b
Remove exhaust grill.
c
Remove the two screws securing the rain
shield to the exhaust backplate.
d
Remove the rain shield.
e
Remove the remaining two screws
securing the exhaust backplate to the exhaust
outlet.
f
Remove the exhaust grill backplate.
g
Using two #10 thread cutting screws secure the vent
adapter from R-Kit R0731100 to the exhaust outlet.
h
If venting for Category I, install an appropriate vent pipe
increaser to accommodate the correct pipe size from Table 1.
Secure to the vent adapter using the screw clamp.
When the installation requires horizontal venting in excess
of what is allowed for Category I installations or calls
for horizontal discharge, the JXi may be installed with a
Category III venting system.
Vent the heater either vertically or horizontally using
Al29-4C stainless steel components. Consult manufacturers
such as Z-Flex
®
or Heat Fab
®
to obtain approved
components. Venting materials must comply with UL
®
1738 for Category III, Special Gas Vent. Based on the
normally expected ue temperatures of this appliance.
PLASTIC VENTING MUST NOT BE USED.
i
If venting for Category III, install appropriate vent pipe
from Table 1. Secure to the vent adapter using the screw clamp
to ensure a proper seal.
Double check that there are no possible leak paths between
joints. If a leak path is identied or suspected it can be
sealed using red RTV 600° F rated silicone adhesive.
When using parts or materials from other manufacturers
please be sure to follow the manufacturers instructions
completely to ensure harmonious function.
IMPORTANT NOTE
In the Commonwealth of Massachusetts, additional requirements,
covered in document CMR 248 5.00, which supersede some of
the requirements of ANSI Z223.1 (NFPA 54) apply to Side Wall
Horizontally Vented appliances. If installing this product using an
approved side-wall horizontal vent system in the Commonwealth of
Massachusetts, be sure to adhere to these additional requirements.
These requirements include verbiage that says that the property
owner is to ensure that Carbon Monoxide Detectors are installed in
the vicinity of the appliance and also on all levels of the dwelling in
which the appliance is installed.
For further instructions, contact Technical Support at 800.822.7933.
i
g
h
Vent Elbow
for Category I
OR
for Category III
Increaser
4" Vent Pipe
Vent Adapter
Exhaust Outlet
e
b
f
c
d
Exhaust Grill
Exhaust Grill
Backplate
Rain Shield
Exhaust Outlet
a
a
