ENGLISH
Jandy
®
, JXi
™
Gas-Fired Pool & Spa Heater
|
Installation & Operation Manual
Section 3. Getting Started
Install the JXi in accordance with the procedures in this
manual, local codes and ordinances, and in accordance
with the latest edition of the appropriate national code.
See Section 1.7.
If the heater is to operated in below freezing conditions it
should be installed in a protected outdoor shelter.
See Section 3.3.
All gas-red products require correct installation to
ensure safe operation. The requirements for pool heaters
include the following:
• Field assembly (if required)
• Appropriate site location, clearances and ooring
• Sufcient combustion and ventilation air
• Properly sized gas meter and piping
• Proper electrical wiring
• Sufcient water ow
This manual provides the information needed to
meet these requirements. Review all applications and
installation procedures before continuing the installation.
3.1 Package Contents
For ASME heater models JXi400NC, JXi400PC, JXi260NC and JXi260PC please go to “Appendix A. ASME® Header” on page 49.
Before completely unpacking the unit please inspect
carton for damage. In addition, please check the carton
label to ensure that you have the correct fuel type and
BTU rating for your application.
JXI400N
DIRECT IGNITION
E15XJ1000
399,000
JXI, US
CSA Certified for installations up to 4,500 FT (1,372m), BTU output
is reduced about 4% per 1000 ft (305 m) over 4,500 ft (1,372m). In
general efficiency is not affected by altitude.
ALTITUDE:
JXI400N
DIRECT IGNITION
E15XJ1000
399,000
JXI, US
JXI400P
DIRECT IGNITION
E15XJ1232
399,000
JXI, US
CSA Certified for installations up to 4,500 FT (1,372m), BTU output
is reduced about 4% per 1000 ft (305 m) over 4,500 ft (1,372m). In
general efficiency is not affected by altitude.
ALTITUDE:
1
2
3
4
5
6

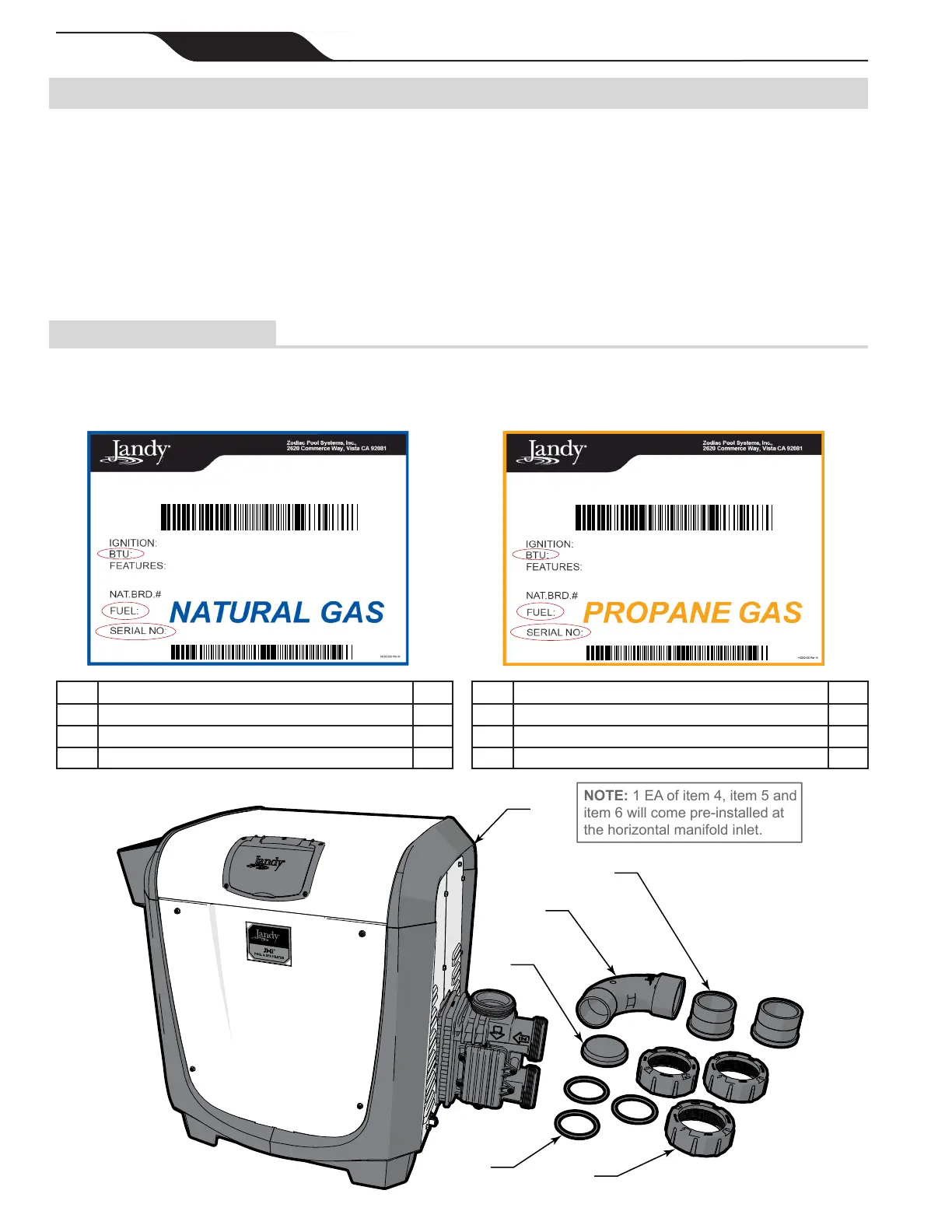

NOTE: 1 EA of item 4, item 5 and
item 6 will come pre-installed at
the horizontal manifold inlet.
Item Description Qty.
1 JXi Heater 1
2 Versa Plumb
®
Sweep Elbow 1
3 2 in Universal Union Tailpiece 2
Item Description Qty.
4 2 in Universal Union Cap 1
5 2 in Universal Union O-ring 3
6 2 in Universal Union Nut 3
OR
