5.2.2 Water Inlet Piping (From Section “5.2.2 Water Inlet Piping” on page 21)
Check ow rates as outlined in Section 5.1 and if
necessary make provisions for and ensure sufcient space
for the installation of a manual bypass valve as outlined
in Section 5.1.1.
The side inlet is positioned at a 10 1/8 in (255.7 cm)
center height providing an ideal height for replacement
unit or new construction plumbing.
• Turn off all power to the heater at the breaker.
• Turn off main gas supply to heater.
• Make sure the pump is off and will remain off for the
duration of the procedure.
• Do a dry t test of cut pipe lengths in order to ensure
proper alignment.
• Pass the 2” Sleeve through the 2” gasket.
• Seat the gasket and sleeve into the connector ange.
• Secure the connector ange to the header using the
ange bolts and washers. Make sure that the gasket is
properly seated at the header.
• Install 2” threaded pipe into the connector ange.
• Repeat the above steps for the manifold outlet. Again
paying special care to ensure proper seating of the
gasket.
NOTE: When connecting CPVC pipe to the metal recepticle
Zodiac Pool Systems LLC recommends LA-CO
®
PLASTO-JOINT
STIK
®
joint Compound.
Flange Bolt
2" Pipe
Connector Flange
Flange Washer
Header
2" Gasket
2" Sleeve

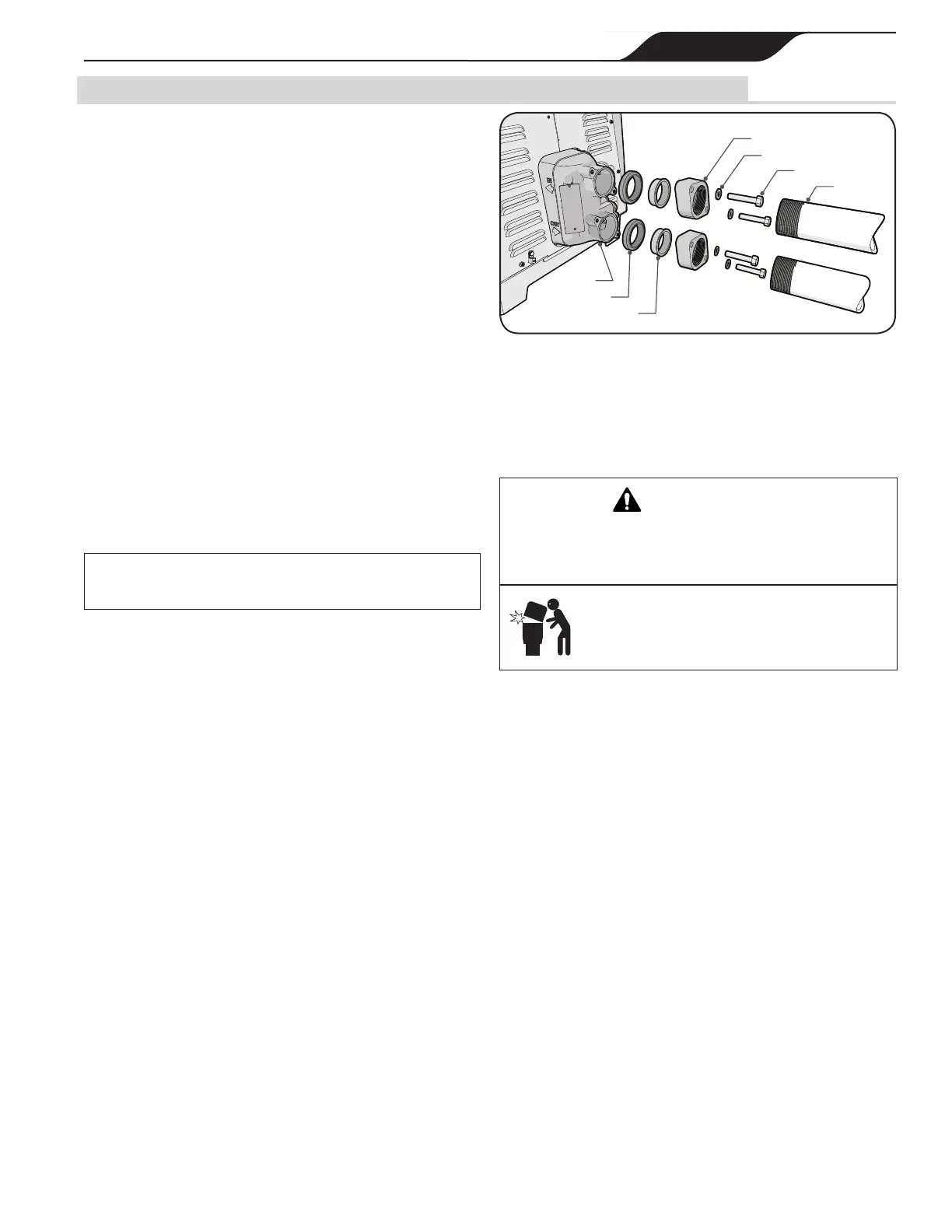

Figure 13a. 2" Threaded Inlet Pipe
• Return all valves to their operating positions.
• Restore power to the heater at the breaker.
• Turn on pump and inspect carefully for leaks.
• Restore main gas supply.
• Start the system and check for proper ow.
• Return heater to normal operation.
WARNING
To avoid an electrical shock hazard, which can result in serious
injury or death, ensure that all electrical power to the system is
turned off before approaching, inspecting or troubleshooting any
leaking valves or plumbing that may have caused other electrical
devices in the surrounding area to get wet.
Followallltermanufacturer’sinstructions.Never
attempttoassemble,disassembleoradjustthelter
when there is pressurized air in the system. Starting the
pump while there is any pressurized air in the system
cancausethelterlidtobeblownoff,whichcancause
death, serious personal injury or property damage.
