4.2 Outdoor Installation
Locate the heater:
• On a level solid surface
• 5 ft (1.5 m) from inner pool edge unless separated by
a permanent solid barrier, i.e. a wall or fence
• In an open area, not under a deck or other structure
• Away from doors windows or louvers that connect
in any way to occupied or inhabited areas of the
building
NOTE: In Canada the top of the exhaust vent must be at least 10
feet (3 m) from any building opening.
• Away from rainwater runoff
• Away from potential sprinkler water intrusion
• So that the top of the heater is at least 3 feet (1 m)
below any overhang
• So that the top surface of the heater is at least 3 feet
(1 m) above any forced air inlet within 10 feet (3 m)

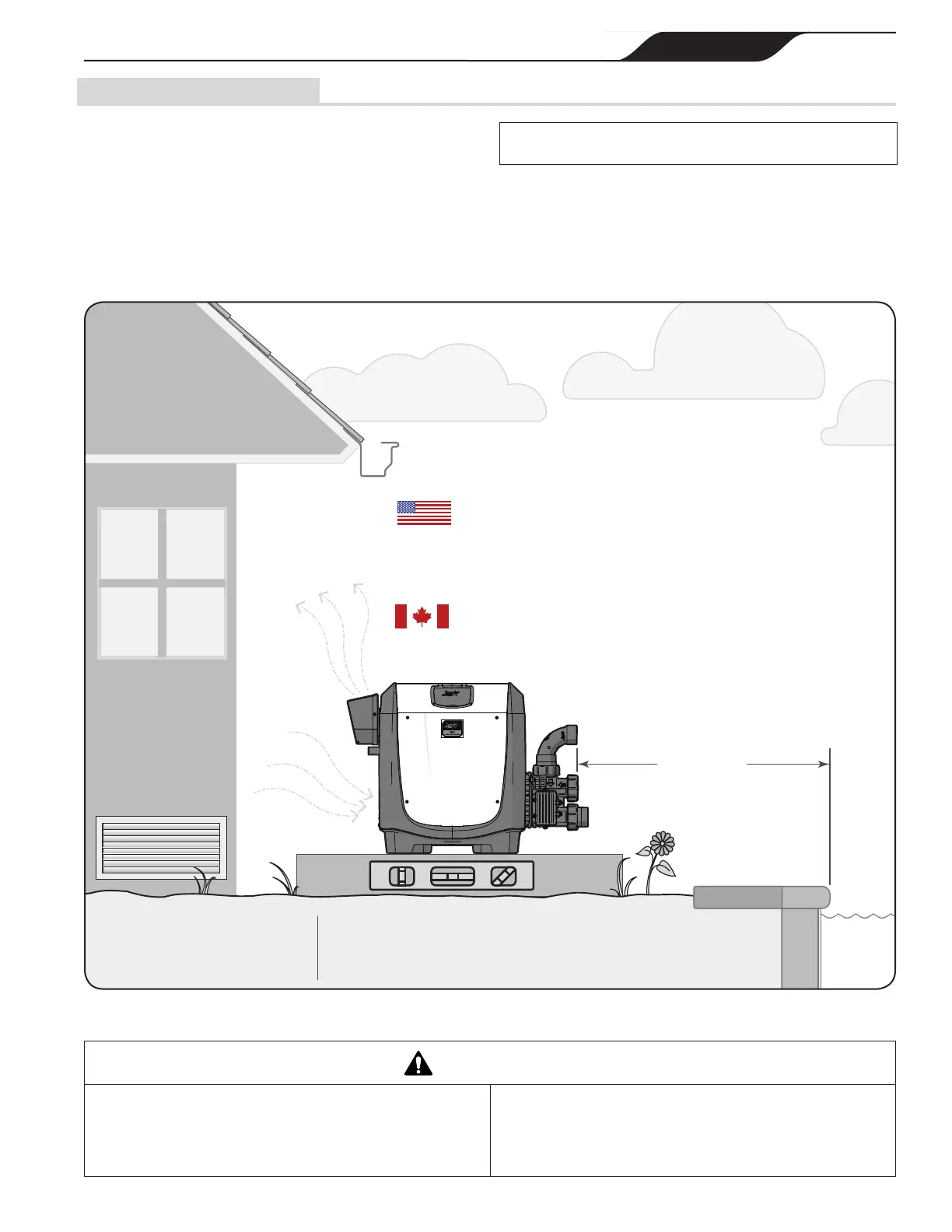

Figure 3. Location Requirements
min. 5 ft (1.5 m)min. 5 ft (1.5 m)
unless the heater is
separated from the pool by
a solid fence, wall or other
permanent solid barrier.
Locate the heater on a level surface in an open, unroofed area.
Do not install the heater under a deck.
The heater must be installed on a level, solid, and firm surface or platform.
Although it is always advisable to install the heater on a non-combustible
surface, the JXi-series has been CSA-certified for installation on solid,
firm, and level combustible surfaces. DO NOT INSTALL ON CARPET.
Do not locate the heater
below or adjacent to any
doors, windows, louvers,
grills, etc., which connect
in any way with an
inhabited area of a
building, even though the
access might be through
another structure (e.g., a
garage or utility room).
If the heater is installed close to a structure, protect it from rain water runoff
with rain gutters on the roof or other measures.
Be sure to divert rain water runoff away from heater
The area under an
overhang must be
open on three sides to
prevent combustion
gases from being
diverted into living
areas through doors,
windows, or gravity
inlets
In the United States install the heater so that there is at least a
three (3) foot (1 m) clearance between the bottom of the
overhang to the top of the heater exhaust vent.
Do not install the heater with the top of the vent assembly within
4 feet (1.22 m) horizontally, 4 feet (1.22 m) below or less than 1 ft
(300 mm) above of any opening into a building. Local codes and
installation requirements may vary.
In Canada, install the heater so that the top of the vent is at least
10 feet (3.0 m) from any building opening.
The top of the heater exhaust vent must be at least 3 feet (1 m) above any
forced air inlet, or intake ducts located within 10 feet (3.0 m) horizontally
Do not locate the heater near sprinkler
systems that could spray water on it.
Water from sprinklers can damage
controls and electronic components.
WARNING
United States
Do not install the heater with the top of the vent assembly within 4 feet
(1.22 m) horizontally, 4 feet (1.22 m) below or less than 1 ft (300 mm)
above of any opening into a building. Local codes and installation
requirements may vary.
Canada
Do not install the heater with the top of the vent assembly within
10 feet (3.0 m) of any opening into a building. Local codes and
installation requirements may vary.
