Page 49
ENGLISH
Jandy
®
, JXi
™
Gas-Fired Pool & Spa Heater
|
Installation & Operation Manual
Appendix A. ASME
®
Header
Please use the information below for the following
ASME heater Models, JXi400NC, JXi400PC, JXi260NC
and JXI260PC. The corresponding sections from the
manual are cross referenced with page numbers at the
beginning of each section.

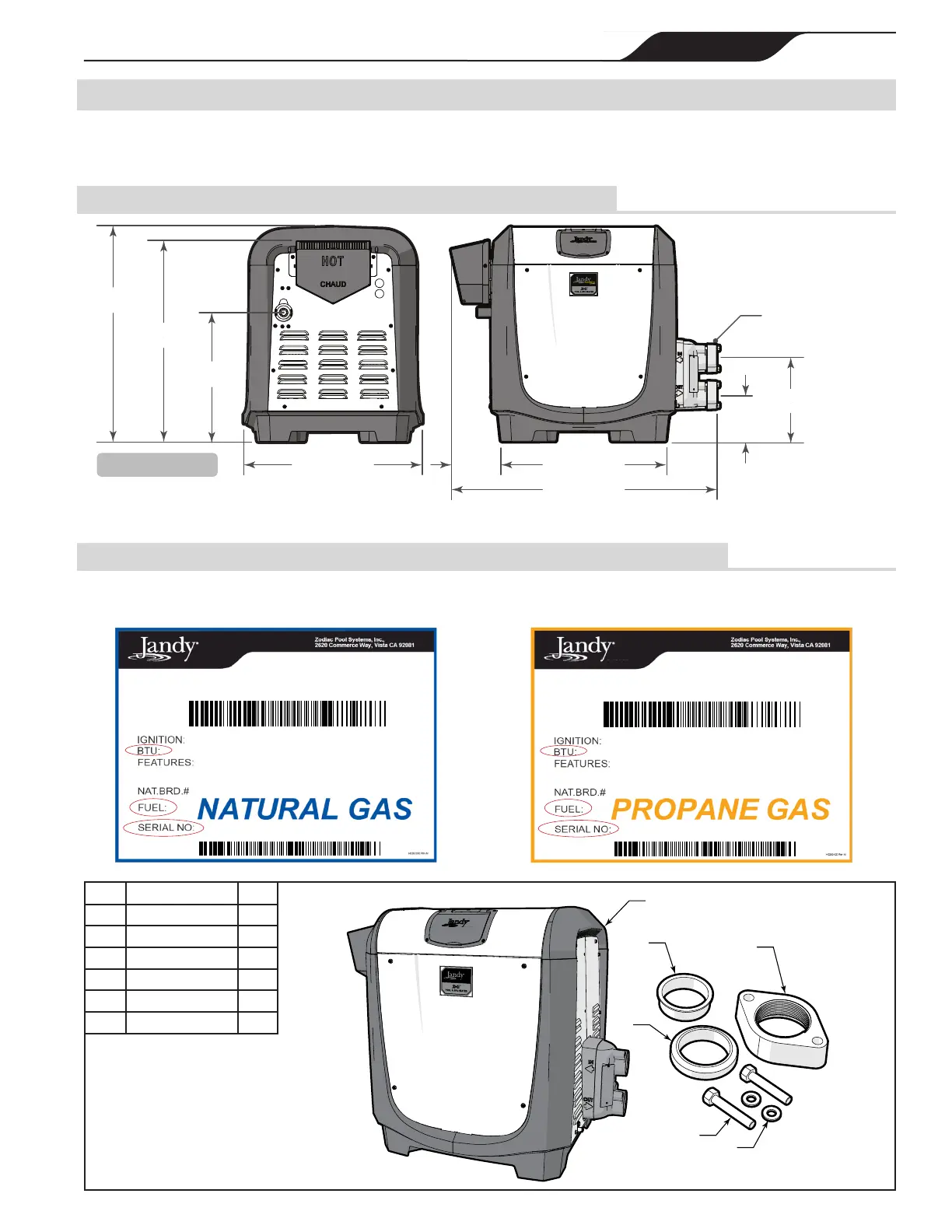

1.6 Dimensions (From Section “1.6 Dimensions” on page 4)
Figure 26. General Dimensions
For ASME heater models JXi400NC, JXi400PC, JXi260NC and JXi260PC please go to “Appendix A. ASME® Header” on page 49.
22.1 in (56 cm)
24.9 in
(63 cm)
16 in
(40.6 cm)
21.6 in (55 cm)
5.1 in
(13 cm)
5.5 in
(14 cm)
10.0 in
(26 cm)
5.5 in
(14 cm)
10.0 in
(26 cm)
32.9 in (83 cm)
26.5 in
(67 cm)
22.1 in (56 cm)
24.9 in
(63 cm)
16 in
(40.6 cm)
21.6 in (55 cm)
32.9 in (83 cm)
26.5 in
(67 cm)
Inlet
Dimensions are identical
for all heater models
2.1 Package Contents (From Section “2.1 Package Contents” on page 6)
Before completely unpacking the unit please inspect
carton for damage. In addition, please check the carton
label to ensure that you have the correct fuel type and
BTU rating for your application.
JXI400NC
DIRECT IGNITION
XXXXXXXXXXXXXXXXXX
399,000
JXI, US
CSA Certified for installations up to 4,500 FT (1,372m), BTU output
is reduced about 4% per 1000 ft (305 m) over 4,500 ft (1,372m). In
general efficiency is not affected by altitude.
ALTITUDE:
JXI400NC
DIRECT IGNITION
XXXXXXXXXXXXXXXXXX
399,000
JXI, US
JXI400PC
DIRECT IGNITION
XXXXXXXXXXXXXXXXXX
399,000
JXI, US
CSA Certified for installations up to 4,500 FT (1,372m), BTU output
is reduced about 4% per 1000 ft (305 m) over 4,500 ft (1,372m). In
general efficiency is not affected by altitude.
ALTITUDE:
Item Description Qty.
1
2
3
4
5
6
1 JXi Heater 1
2 Connector Flange 2
3 2” Sleeve 2
4 2” Gasket 2
5 Flange Bolt 4
6 Flange Washer 4
To Next Page
