Page 55
ENGLISH
Jandy
®
, JXi
™
Gas-Fired Pool & Spa Heater
|
Installation & Operation Manual

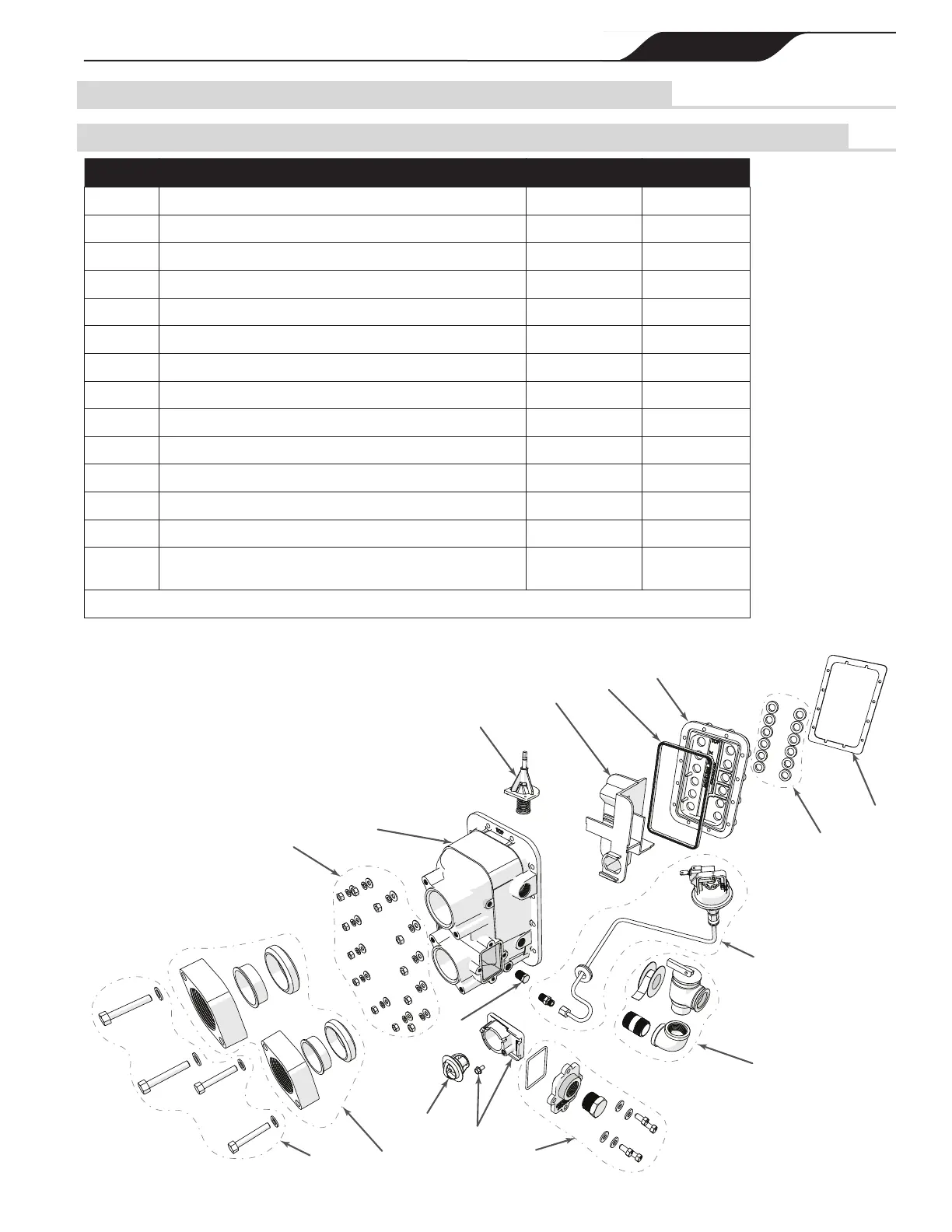

12.4 Water System Spare Parts List and Exploded Parts Diagrams
(From Section “12.4 Water System Spare Parts List and Exploded Parts Diagrams” on page 47)
Key No Description model 260 model 400
1 Thermal Regulator Valve Access Plate Kit R0820400 R0820400
2 Thermal Regulator Valve Kit (TRV) R0589700 R0589700
3 Thermal Regulator Valve Retainer Kit R0820500 R0820500
4 Bypass Kit R0589800 R0589800
5 Drain Plug Kit R0820600 R0820600
6 Gasket and Seals Kit R0820700 R0820700
7 Header Backplate Kit R0828403 R0828405
8 Header, 2 Port (no backplate included;must order separately) R0820800 R0820800
9 Water Pressure Switch Kit R0828501 R0828501
10 Pressure Relief Valve (PRV) Install Kit R0336102 R0336102
11 Flow Plate Assembly R0828602 R0828603
12 Connector Flange Kit R0461500 R0461500
13 Connector Flange Hardware R0477800 R0477800
14* Goody Bag Kit (Goody Bag Kit Includes the Installation and
Operation Manual and the Universal Controller Quick Guide)
R0820900 R0820900
*Not Show in Exploded View
1
3
10
11
5
7
8
9
12
13
6
6
6
6
2
4
NOTES
