Page 47
ENGLISH
Jandy
®
, JXi
™
Gas-Fired Pool & Spa Heater
|
Installation & Operation Manual

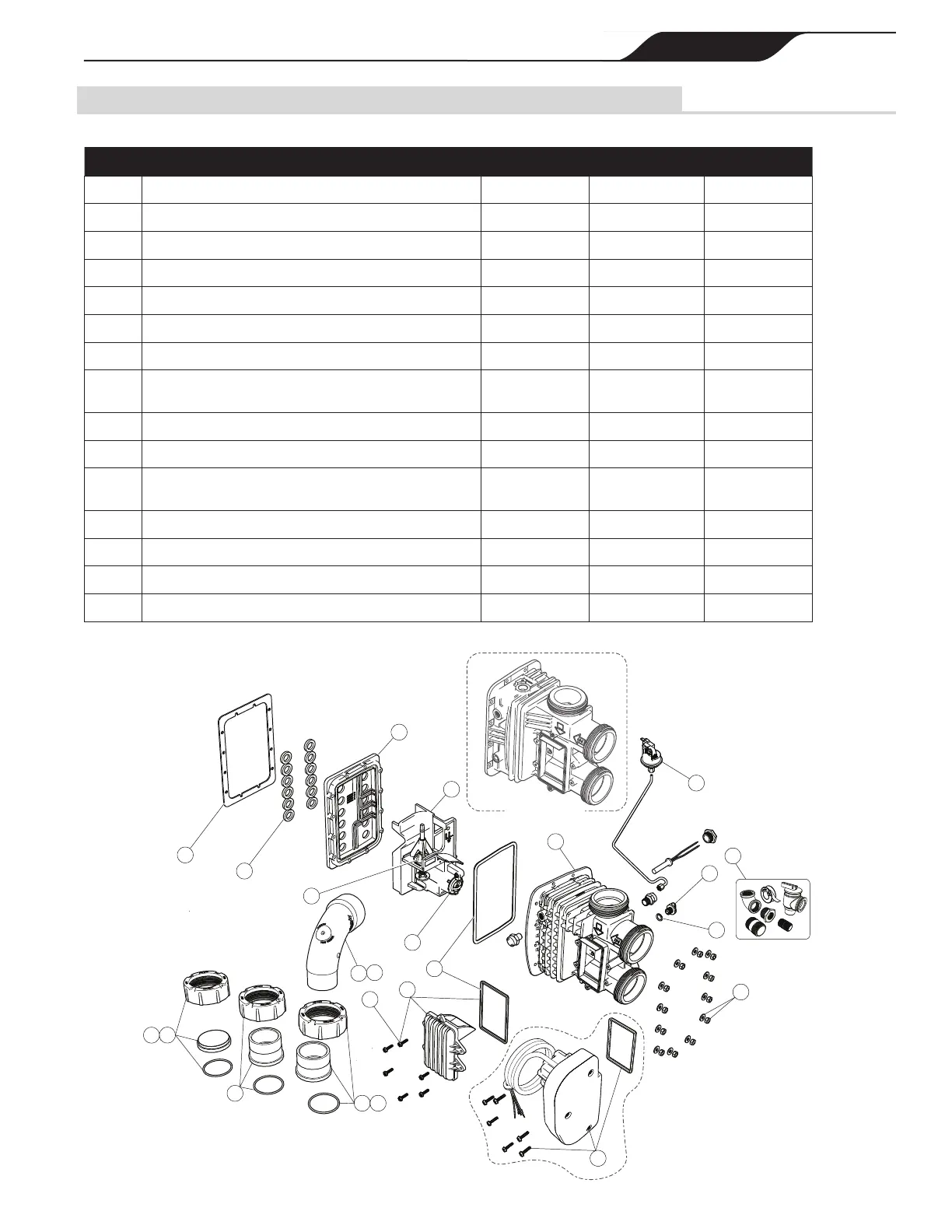

13.4 Water System Spare Parts List and Exploded Parts Diagrams
For ASME heater models JXi400NC, JXi400PC, JXi260NC and JXi260PC please go to “Appendix A. ASME® Header” on page 49.
Key No Description model 200 model 260 model 400
1 Access Door Kit (with O-Ring Seal and Screws) R0589600 R0589600 R0589600
1a VersaFlo Bypass (Optional Accessory) JXIVFKIT JXIVFKIT JXIVFKIT
2 Thermal Regulator Valve Kit (TRV) R0589700 R0589700 R0589700
3 Bypass Kit R0589800 R0589800 R0589800
4 Drain Plug Kit R0446000 R0446000 R0446000
5 Gasket and Seals Kit R0589500 R0589500 R0589500
6 Manifold Backplate Kit R0590002 R0590003 R0590005
7
Manifold, 3 Port (no backplate included;
must order separately)
R0590100 R0590100 R0590100
8 Water Pressure Switch Kit R0457001 R0457001 R0457001
9 Goody Bag Kit
†
R0593500 R0593500 R0593500
10
Universal Half Union Kit
(1 Ea, requires 2 kits for full unit replacement)
R0522900 R0522900 R0522900
11 Sweep Elbow Aqualink
®
Temp Sensor SEAQL1001 SEAQL1001 SEAQL1001
12 Drain Cap Assembly Kit R0523000 R0523000 R0523000
13 Pressure Relief Valve (PRV) Install Kit R0336101 R0336101 R0336101
14 Flow Plate Assembly R0725201 R0725202 R0725203
† Goody Bag Kit Also Includes the Installation and Operation Manual and the Universal Controller Quick Guide
2
3
5
5
5
5
4
8
6
14
1
1a
5
5
7
9
11
12
9
9
10
9
Header Type “A”
(Discontinued)
Header Type “A”
(Discontinued)
13
To Next Page
