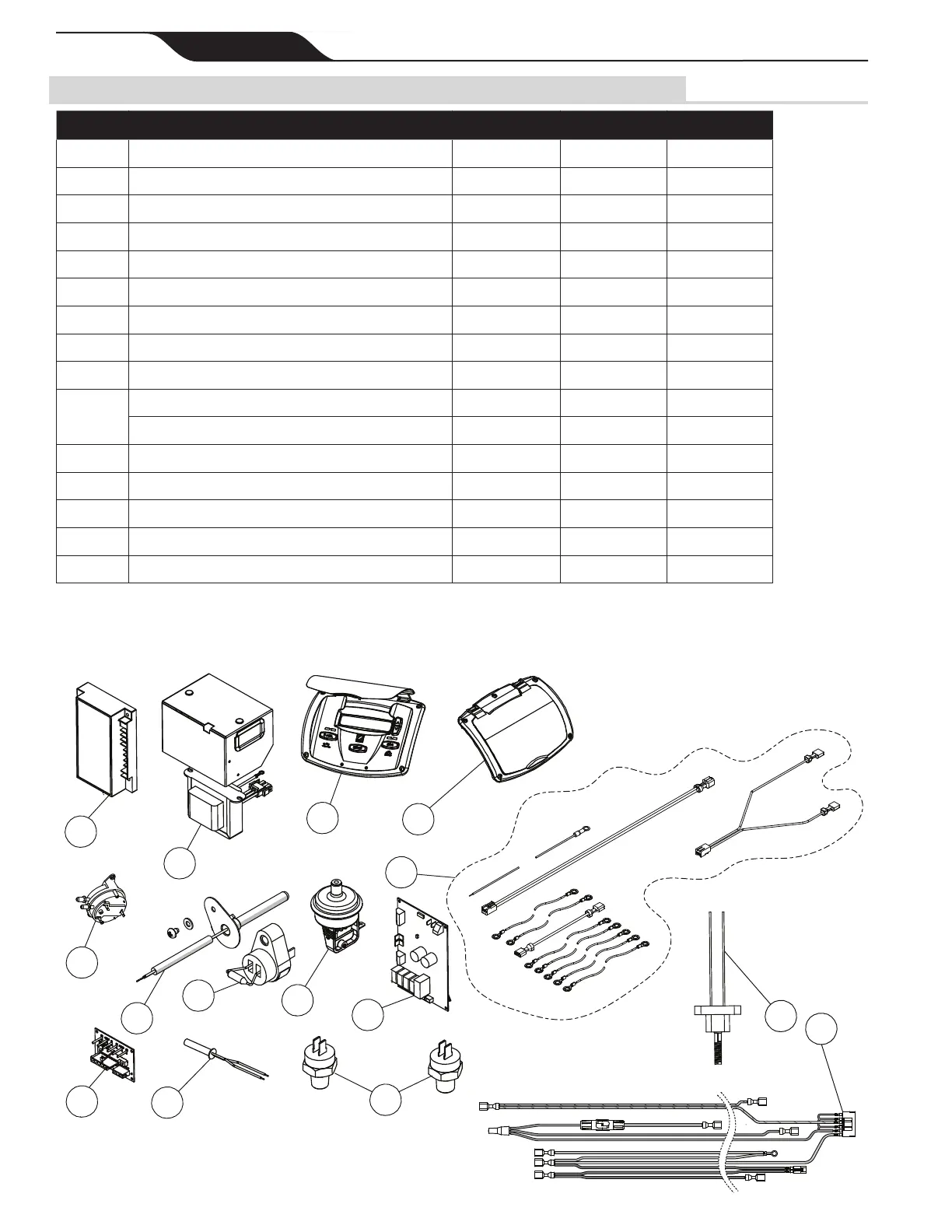

13.5 Electrical System Spare Parts List and Exploded Parts Diagrams
Key No* Description model 200 model 260 model 400
1 Ignition Control Kit R0456900 R0456900 R0456900
2 Transformer Kit R0456301 R0456301 R0456301
3 User Interface Kit R0591901 R0591901 R0591901
4 User Interface Lid Kit R0592000 R0592000 R0592000
5 Wiring Harness Kit R0592100 R0592100 R0592100
6 Air Pressure Switch Kit R0456400 R0456400 R0456400
7 Flue Temp Sensor§ R0719400 R0719400 R0719400
7a Fusible Link† R0524300 R0524300 R0524300
8 Water Pressure Switch Kit R0013203 R0013203 R0013203
9
Power Interface Board (PIB)§ R0719500 R0719500 R0719500
Power Interface Board (PIB)‡ R0458200 R0458200 R0458200
10 Power Distribution Board (PDB) R0458100 R0458100 R0458100
11 Temperature Sensor Kit R0456500 R0456500 R0456500
12 High Limit Temperature Sensors Kit R0592300 R0592300 R0592300
13 Igniter Kit R0457502 R0457502 R0457502
14 Power Interface Harness R0457701 R0457701 R0457701
† Fusible Link to replace factory installed fusible link on heaters with serial number revision G or earlier.
‡ PIB to replace factory installed PIB on heaters with serial number revision G or earlier.
Upgraded components R0719400 and R0719500 must both be installed for heater to operate properly.
§ Flue Temp Sensor and PIB must be replaced together in Rev G and earlier heaters. Both parts are required in
order to install the VersaFlo™ Bypass accessory PN: JXIVFKIT.
1
2
3
4
6
7a
8
9
10
11
13
12
7
14
5*
Items not shown in illustration:
• Power interface, controller harness w/bypass
• Universal controller main reset, rollout switch harness
• User interface, universal controller harness 4’
*
To Next Page
