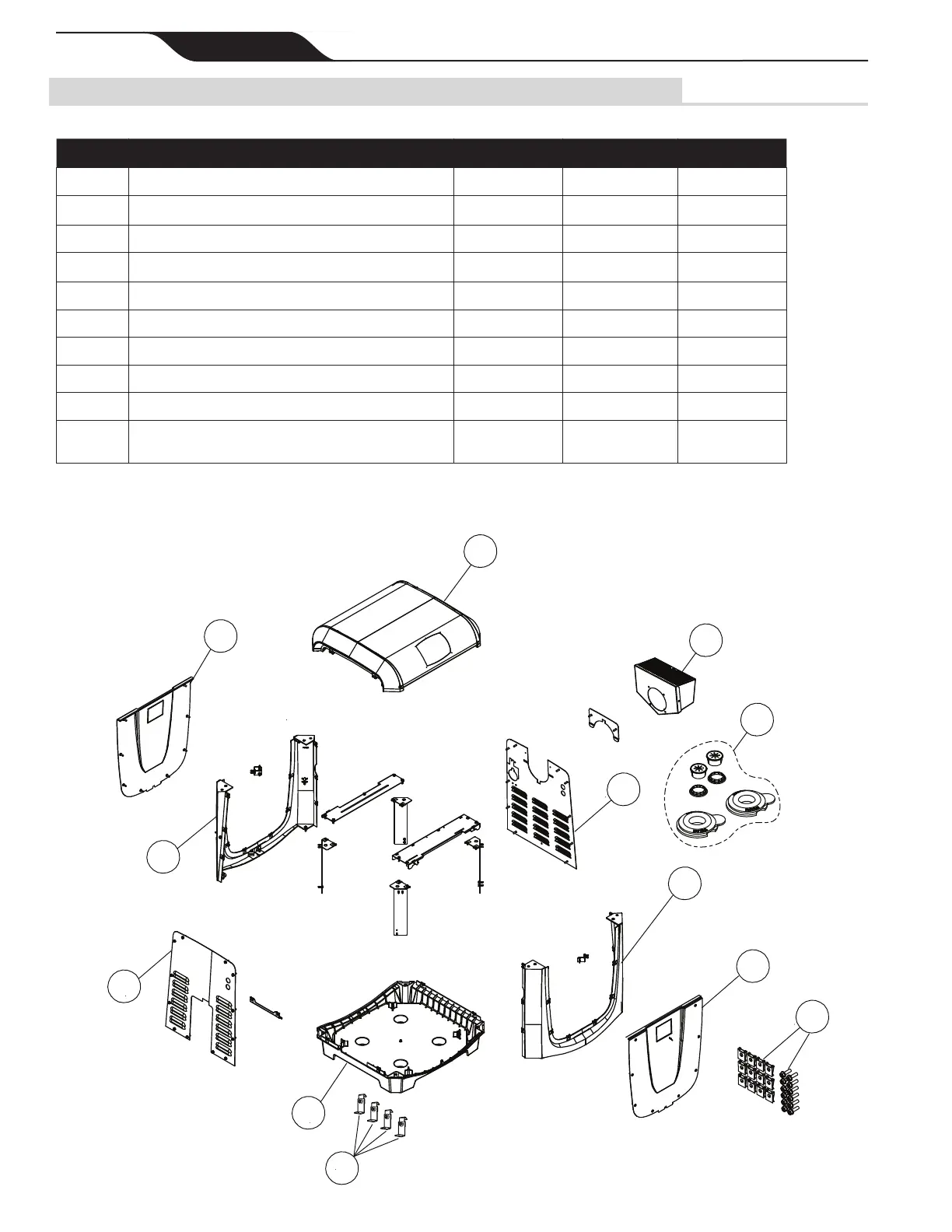

13.2 Cabinet Assembly Spare Parts List and Exploded Parts Diagram
For ASME heater models JXi400NC, JXi400PC, JXi260NC and JXi260PC please go to “Appendix A. ASME® Header” on page 49.
Key No Description model 200 model 260 model 400
1 Heater Jacket Top Kit (no User Interface) R0592400 R0592400 R0592400
2 Corner Post Kit, Left/Right (set of 2) R0592500 R0592500 R0592500
3 Heater Base Kit R0592600 R0592600 R0592600
4 Front or Back Panel Kit R0592700 R0592700 R0592700
5 Side Panel Kit* R0592900 R0592900 R0592900
6 Vent Terminal Housing Kit R0593100 R0593100 R0593100
7 Jacket Hardware Kit R0593300 R0593300 R0593300
8 Anchor Brackets Kit (set of 4) R0593400 R0593400 R0593400
9 Jacket Hole Plug Kit R0591800 R0591800 R0591800
10** Complete Replacement Box
Packaging Kit
R0593600 R0593600 R0593600
*Includes: Exhaust side panel, top panel closure, anti rotation bracket and access door.
Header side panel LH, Header side panel RH.
** Not Shown
1
2
3
4
6
9
5
2
4
5
8
7
To Next Page
