Janome JR3400 series - Output Signal (NPN)

External Control (I/O / Fieldbus) 101 DESKTOP ROBOT JR3000
8.7

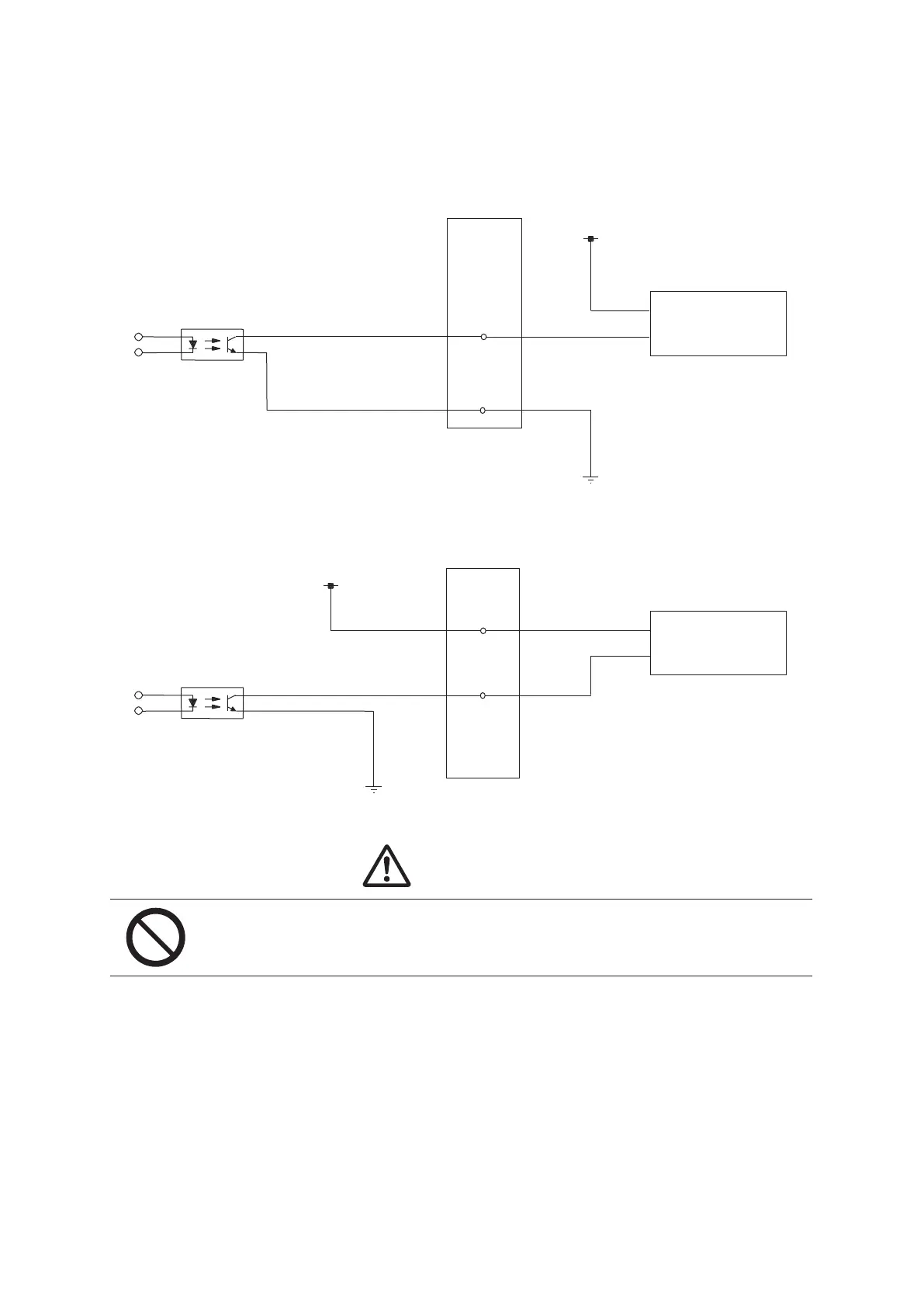

Output Signal (NPN)
■
When using an external power supply
■
When using an internal power supply (optional)
Caution
Do not assign wiring other than the wiring specified above.
Assigning the wrong wiring can damage the internal circuits.
＋
－
#genOut5-
#genOut8
COM-
(GND)
External
Device
External Power Supply DC 24 V
＋
－
#genOut5-
#genOut8
COM+
(DC 24 V)
External
Device
Internal Power Supply DC 24 V
