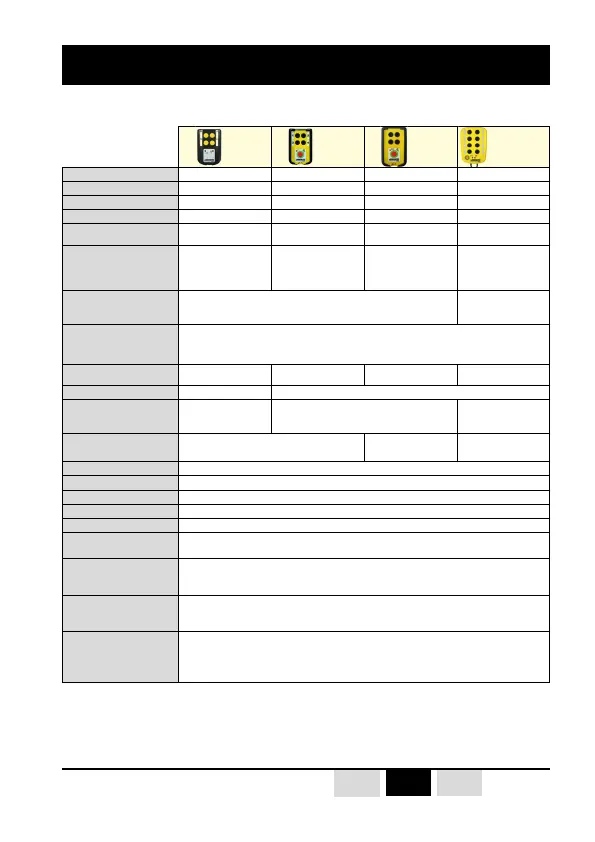

6 - Technical characteristics
6.1- Orion transmitters (ORE)
Standard
(ORET)
Industrial
(OREi)
Industrial
(OREV)
Multifunction
(OREL)
Housing material ABS ABS ABS ABS
Housing color black yellow / black yellow / black yellow
Degree of protection IP40 IP65 IP65 IP65
Weight (with batteries or accu.)
65 g. 75 g. 105 g. 160 g.
Number of command
buttons
1, 2 or 4 2 or 4 2 or 4 4, 6, 8, 12 or 16
Identity code
256 codes possible,
programmable by
microswitches on
transmitter
256 codes possible,
programmable by
microswitches on
transmitter
4096 codes possible.
Code programmable
by microswitches + 1
button in transmitter
256 codes possible,
programmable by
microswitches on
transmitter
Power supply 2 batteries 1,5 V type AAA
3 batteries 1,5 V AAA
or 3 accumulators
AAA NimH
Autonomy
All versions with batteries : :
1 year (used 50 times per day with impulses of 5 seconds)
Multifunction transmitters with accumulators : 42 h for 50 % use time
Charging time
(supplied with accus.)
/ / / < 3 hours
Safety / 1 «On/Off» button (depending on model)
Mechanical protection / Built-in protected foam
Protective foam:
OWE30
(optional accessory)
Storage
Cases, references : OWE13 or OWE14
(optional accessories)
Case, ref. : UBWE34
(optional accessory)
Case, ref. : UBWE34
(optional accessory)
Operating mode Simultaneous commands
Radio link Momentary (when command button pressed)
Transmission module (1) 18 frequencies per device with On/Off button
Transmission frequ. (1) UHF 433,100 MHz to 434,740 MHz - FM Modulation
Transmission power (1) < 1 mW (5 power levels adjustable on transmitter OREV)
Average range (2)
150m in unobstructed area
50m in typical industrial environment
Temperature ranges
Operating : -20° C to + 50° C
Storage : -30° C to + 70° C
Charging (OREL transmitter with accumulators) : 0°C to +40°C
Battery or accumulator
charge level indication
2 indication levels by a red indicator light :
Red indicator light off = batteries or accumulators charge is > à 10%
Red ind. light fl ashes = batteries must be replaced or accu. must be charged
Other indication
Model without «On/Off» button :
A green indicator light comes on and fl ashes while the function button is pressed.
Model with «On/Off» button :
A green indicator light come on and fl ashes when the transmitter keypad is active.
(1) = UNo licence required. Supplied programmed for channel No. 17 in standard confi guration. REMINDER:
The transmitter radio channel can only be changed on the ORE transmitters equipped with an «On/
Off» button.See Frequencies list in appendix H.
(2) = The range will vary according to the environment conditions, the position of the reception antenna (see
section covering « Position of receiver and antenna ») and the orientation of the transmitter (the range
will be lower in the event of metal obstacles such as : frameworks, partitions, enclosures, etc.)
Range can be limited on OREV transmitter
DRAFT a
