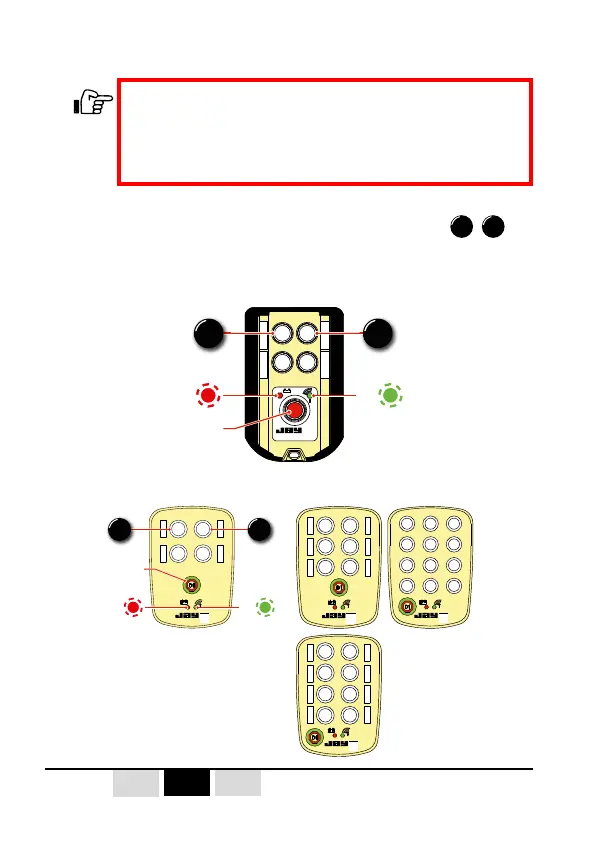

7.8- Radio channel programming procedure
 A transmitter / receiver association must have been realized.
 This procedure is realized by the transmitter with buttons
B1
,
B2
and
«on/off».
 The receiver will stay ON during the procedure to receive the channel
modifi cation command
Only transmitters equipped with «On/Off» button allow the
user to modify and consult the operating radio channel.
On the other transmitter models (without «On/Off» button), the
radio frequency is fi xed to nb.17 - 434,700 MHz.

électronique
+-
B1 B2
B3 B4
B2B1
«On/Off»
Button
Va Vb
«On/Off»
Button
électronique
B1 B2
B3 B4
électronique
B1
B2
B3
B4
B5
B6
B1 B2
électronique
B3
B4 B5 B6
B7 B8 B9
B10 B11 B12
B1 B2
électronique
B3 B4
B5 B6
B7 B8
B1 B2
VbVa
Industrial
transmitters :
Multifunction transmitters :
