3 - Operating
3.1- Operating principle
Orion Series provides remote control of one or several receivers
equipped with relays.
The transmitter and receiver communicate by radio waves on a
specifi c channel with a customized code (identity code).
The radio link is momentary; it is only active when the button on
the transmitter is pressed.
Each relay of the receiver can be programmed to ensure a specifi c
function according to the application.
(Example according to programming.)
Relay No. 1
actuated
Button No. 1
pressed

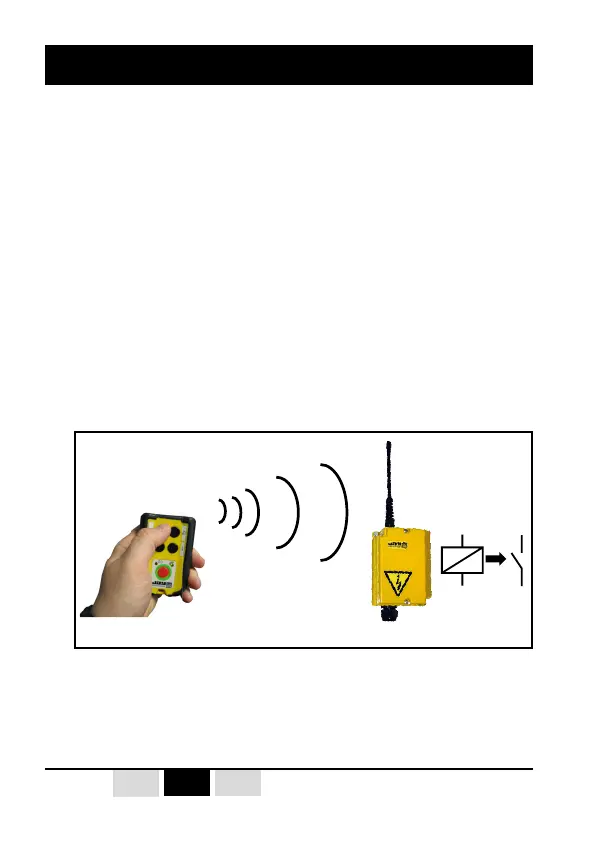

PRINCIPLE
Transmitter Receiver
Radio channel No. 17
(coded communication)
