- 73 -Orion - 324501H
DE
FREN

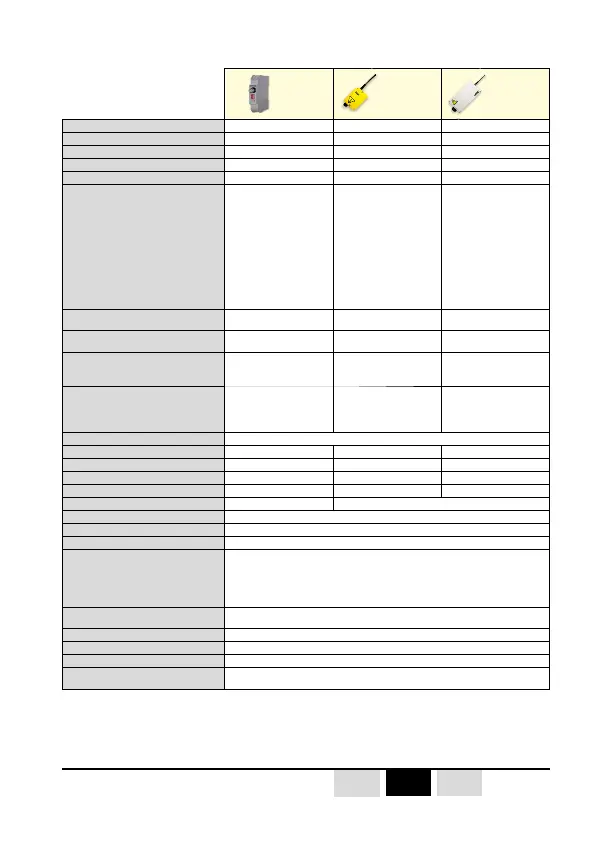

6.3- Orion receivers (ORR)
Rail DIN
(ORRD)
Industrial
(small model)
(ORRS)
Industrial
(large model)
(ORRA)
Housing material PC-GF ABS ABS
Housing color Grey Yellow Grey
Tightness IP20 IP65 IP65
Maximum weight 220 g. 350 g. 1200 g.
Number of command outputs 3 or 2+1 (1) 2 or 4+1 (1) 8+1 (1) or 16+1 (1)
Power supply
12 VDC (-25%/+25%)
24 VDC (-10%/+30%)
24 VAC (+10%/-15%)
ORRS••••F model
12 VDC (9 to 20VDC)
24 VDC (20 to 75VDC)
24 VAC (+10%/-15%)
48 VAC (+10%/-15%)
ORRS••••T model
115 VAC (+10%/-15%)
ORRS••••U model
230 VAC (+10%/-15%)
ORRA••••4 model
12 VDC (9 to 20VDC)
24 VDC (20 to 28VDC)
ORRA••••A model
24 VAC (+10%/-15%)
48 VAC (+10%/-15%)
ORRA••••B model
115 VAC (+10%/-15%)
230 VAC (+10%/-15%)
Max. consumption
75 mA for DC
3,5 VA for AC
180 mA for DC
5 VA for AC
260 mA for DC
11 VA for AC
Min. consumption 320mW for 12/24 VDC
23 mA for 12VDC
350mW for 24VDC
23 mA for 12VDC
350mW for 24VDC
Mounting
Snap-on fastener on
symetrical DIN rail EN
50 022
2 holes M4 exterior 4 holes M4 interior
Cable entry /
1 or 2 plastic cable glands
(depend on model):
PG 13,5 (ø 8 to 12 mm)
1 plastic cap :
PG M16 (ø 5 to 7 mm)
1 plastic cable gland :
PG M32 (ø 20 to 26 mm)
Connection to equipment Junction blocks (for cable 2,5 mm2)
« Power supply » indicator light 1 green indicator light 1 green indicator light 1 green indicator light
« Radio reception » indicator light 1 yellow indicator light 1 green indicator light 1 green indicator light
« Programming » indicator light 1 red indicator light 1 red indicator light 1 red indicator light
« Relay activated » indicator light no indication 1 red indic. light per relay 1 red indic. light per relay
Antenna External by BNC plug 1/4 wave fi xed antenna (2) or internal (3)
Tuner, Sensitivity UHF 433,100 MHz to 434,740 MHz, < 2μV
Operating temperature range - 20°C to + 50°C
Storage temperature range - 30°C to + 70°C
Identity code
256 identity codes possible, programmable by teaching on associated transmitter.
With maximum per relay of : :
- 10 identifi cation codes for different transmitters on Rail DIN (ORRD) and industrial «small
model» receivers (ORRS)
- 4 identifi cation codes for different transmitters on industrial «large model» (ORRA) receivers
Output command type
by relay with 1 NO contact
(1 NC contact or 1 bistable contact possible by programming)
Output response time 50 ms
Operating mode Continuous or bistable (by programming jumper or microswitch)
Interlocking Programmable by jumper or microswitch
Additional function
1 «RM» relay (depending on receiver model) Cat. B safety stop according to EN954-1
if controlled by transmitter «On/Off» button
(1) = «RM» relay
(2) = Plug-in feature possible by BNC plug on industrial receivers, with kit ref : OWR01 (see installation in
appendix E).
(3) = Antenna integration possible in industrial receiver housings, with kit ref : OWR02 (delivered with the
receivers). Beware, the range is divided by 2 in this case. (see installation in appendix F).
