- 79 -Orion - 324501H
DE
FREN

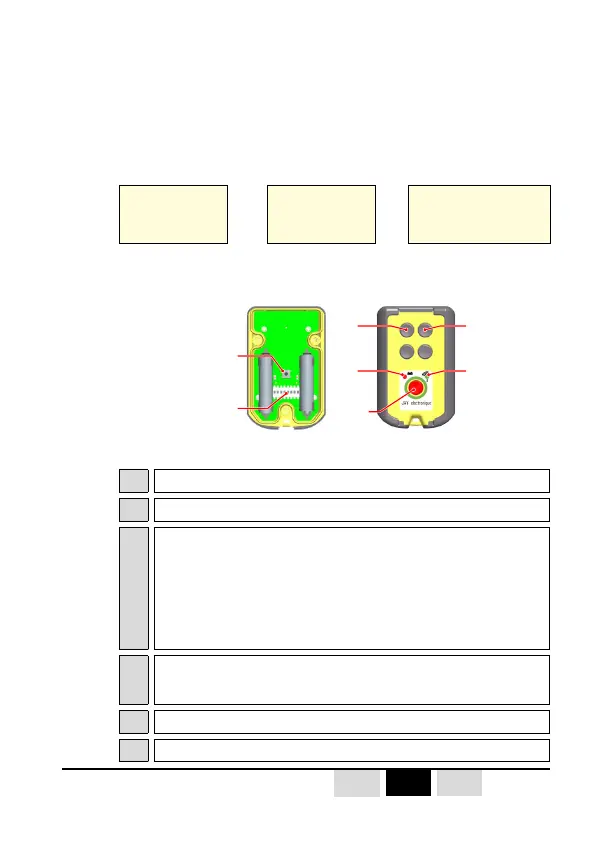

7.2.1- Special features of OREV transmitter
The OREV transmitter provides a signifi cant choice of possible identity
codes : 4096 (instead of 256 codes for the other transmitter models).
This large number of codes is obtained by mixing the « Identity code
group » (16 groups max.) and the codes programmed using the
8-cursor DIP-Switch (256 codes).
OREV transmitter
identity code
=
Group number
(01 to 16)
+
8-cursor DIP_Switch
code (256 possibilities)
The identity code group is chosen by special programming
implementing the internal pushbutton S1 in the OREV transmitter :
Note : steps 2 to 4 are not necessary if the default identity code group on delivery
(01) is preserved.
1
Open the housing of the OREV transmitter
2
Press button S1 ; the Va and Vb indicator lights will fl ash alternately
3
Press function button B1 to enter the group programming mode.
The number of the identity code group currently used by the OREV transmitter is
replicated by the Va and Vb indicator lights :
RED indicator light Va : indicates tens (if On = group No. > 10)
GREEN indicator light Vb : indicates units
The code group number is incremented each time button B1 is pressed ; from n° 1 to
n°16, then n°1 etc...
4
Validate the identity code group by pressing button B2 (or the «On/Off» button if used).
or
Cancel by pressing internal button S1
5
Compose a code using the 8-cursor DIP_switch
6
Close the housing of the OREV transmitter
OREV OREV
S1
B1 B2
VbVa
on/off
Dip_switch 8
DRAFT a
