6.3.4- Particularity of ORRD receiver on DIN rail
The ORRD receiver mounted on DIN rail has
an «RM/R3» relay whose function is selected
using the programming microswitch
JP4
.
This relay can take the «RM» relay function
(see chapter
Operation of «RM» relay) or
the control relay No. 3 function «R3».

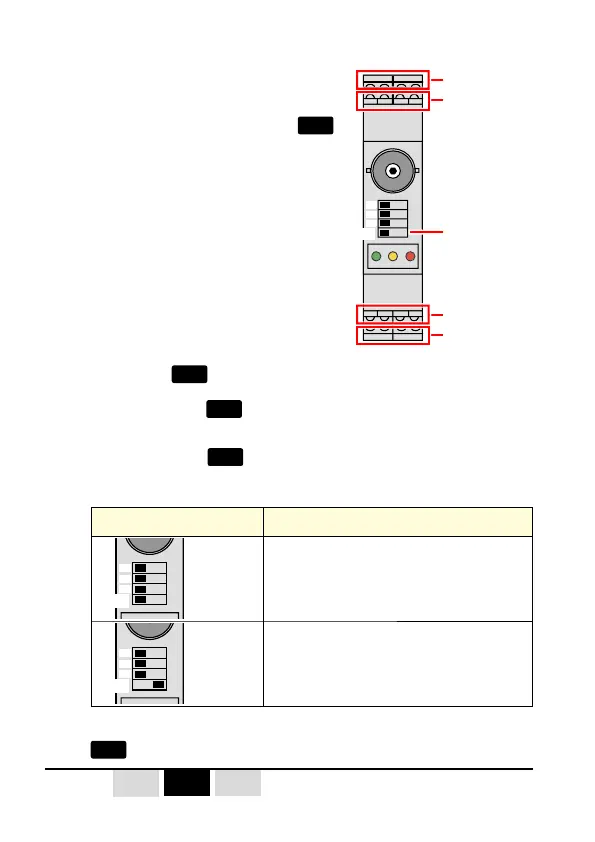

V1 V3 V2
JP1
ONOFF
JP2
JP3
JP4
«Power supply» connection
«RM/R3» relay
connection
«R1» relay
connection
«R2» relay
connection
Microswitch «JP4»
Position of
JP4
et comportement du relais «RM/R3» :
- When microswitch
JP4
is set to the «OFF» position, the «RM/R3» relay
is considered as a «RM» relay..
- When microswitch
JP4
is set to the «ON» position, the «RM/R3» relay
becomes the third function relay «R3» with operation and programming
similar to that of relays R1 and R2.
Microswitch JP4 position «RM/R3» relay function
V1 V3 V2
JP1
ONOFF
JP2
JP3
JP4
«RM» relay
V1 V3 V2
JP1
ONOFF
JP2
JP3
JP4
«R3» relay
Note :
The program settings for relay R3 are saved in the event that microswitch
JP4
is set to the «OFF» position.
JP4
on
OFF
JP4
on
ON
