- 105 -Orion - 324501H
DE
FREN
8.7-
Product wiring
8.7.1- Wiring recommendations
Use control components with integrated noise suppression system.
Do not place cables of different classes side by side.
A minimum space (20 cm) should be observed between the different
classes:
Classe 1 : Radio, antenna cable (case of an antenna extension),
Classe 2 : Mains for power supply of various units,
Classe 3 : Power control for motors, variable speed drive, etc....
Ideally, each cable class should be run through a cable path specifi c to
the class. If only one cable path is available, cables of different classes
should be separated as much as possible.
8.7.2- Wiring the receiver ORR
If fl exible stranded wire is used, crimped terminations should be used
to avoid false contacts and short circuits.
DO NOT FORCE-INSERT THE WIRE IN THE TERMINAL ; THE
TERMINAL STRIP IS NOT AN « AUTOMATIC CONNECTION»
TERMINAL STRIP.

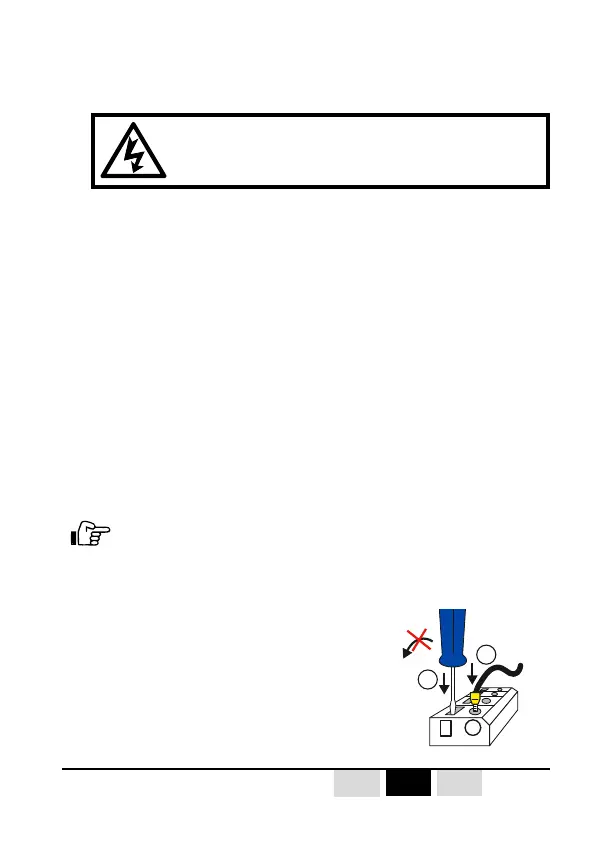

To open the ORRS and ORRA connection terminal strips :
1. Vertically insert the screwdriver (fl at
tip screwdriver of 1.5 to 3 mm width)
in the slot located opposite the wire,
2. Insert the wire,
3. Remove the screwdriver.
To avoid any risks of electrocution, do not
open the receiver housing when receiver is
power supplied.
1
2
DRAFT a
