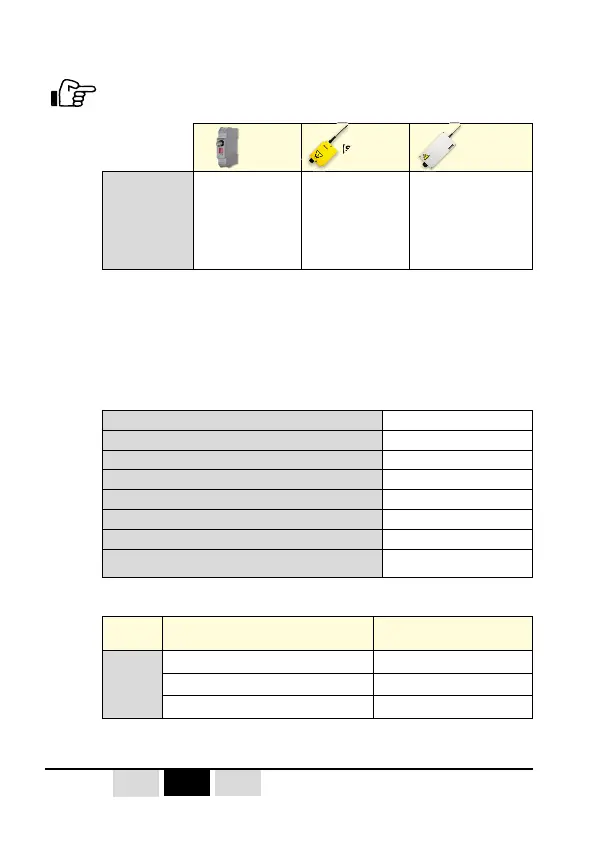

6.3.1- Relays : control limitation
The maximum number of relays activated at the same time
is limited to :
Rail DIN
(ORRD)
Industrial
(small model)
(ORRS)
Industrial
(large model)
(ORRA)
The maximum
number of relays
activated at the
same time is
limited to
3 relays :
3 function relays
or
2 function relays
+ 1 RM relay
4 relays :
4 function relays
or
3 function relays
+ 1 RM relay
9 relays :
9 function relays
or
8 function relays
+ 1 RM relay
All commands exceeding the maximum number of relays
which can be activated simultaneously will be ignored.
6.3.2- Relays : technical characteristics
«RM» relay and function relays :
Contacts AgNi 0,15
Maximum power at cosphi=1 2000 VA
Maximum current switching 8 A
Maximum voltage switching 400 VAC
Minimum current / voltage advised switching 100 mA / 12 VDC
Switching cycles at 250 VAC, 8 A, cosphi=1 100 000
Switching cycles at 24 VDC, 8 A 50 000
Tests per EN 60947-5-1
DC13 at 0,5 A / 24 VDC
AC15 at 3 A / 250VAC
Number of switching cycles on various contactors :
Contactor
Physical unit switched by relay
Number of switching cycles
(for «RM» relay and function «relays»)
CA2DN
LC1D09
LC1D18
LC2D09
Switching at 230VAC (70VA,cosphi=0,75)
2 x 10
6
Switching at 110VAC, (70VA,cosphi=0,75) 1 x 10
6
Switching at 48VAC (70VA,cosphi=0,75) 0,5 x 10
6
