4 - Default confi guration on delivery
4.1- Instructions before use
The Orion transmitters and receivers are supplied with certain
parameters pre-set in factory to allow immediate use of the
equipment.
However, it is indispensable to customise these settings
to ensure the uniqueness of your installation and to familiarise
yourself with the complete range of functions provided by the
Orion series (see chapter «
Product confi guration»).

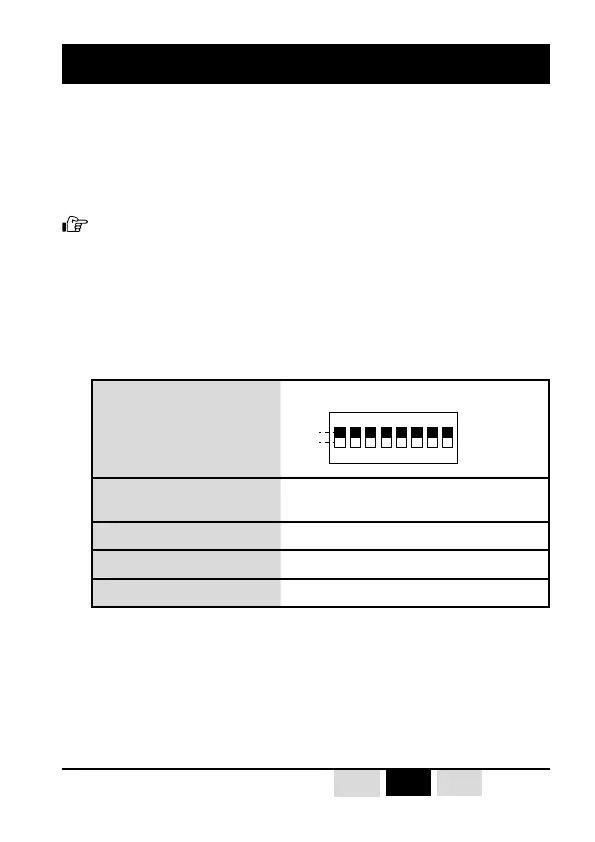

4.2- Orion transmitters delivery confi guration
Identity code
(internal DIP-switch)
ON - ON - ON - ON - ON - ON - ON - ON
ON
ON
OFF
12345678
Group of identity codes
(only for OREV transmitter)
01
Radio channel (1) Channel nb.17 (434,700 MHz)
Radio power (2) Level nb.4
« Standby » function (3) 4 mn
(1) = The programming of another radio channel number can only be done with a
transmitter equipped with an «On/Off» button.
(2) = The radio transmit power is only modifi able with the OREV transmitters
equipped with an « On/Off» button.
(3) = Automatic shutdown of remote control, only available with a transmitter
equipped with an «On/Off» button.
