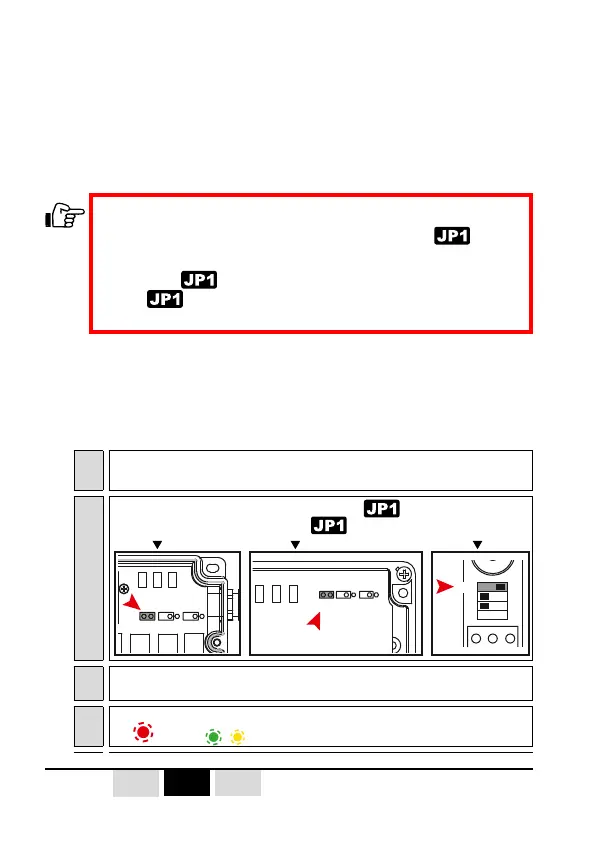

7.7- Programming of confl icting command interlocking
This procedure allows to forbid confl icting actions activated by the
simultaneous pressure of two transmitter function buttons.
Relays concerned by the interlocking will be deactivated (OFF state) if an
interlocking is detected..
 A transmitter / receiver association must have been realized..
 This procedure requires transmitter and receiver.
IMPORTANT :
This programming procedure uses the receiver
jumper
/ microswitch.
Every time
jumper (ORRS and ORRA) is put in short
circuit microswitch (ORRD) is set on «ON» position,
previously programmed interlockings are erased.
1
ORRS and ORRA receivers : Switch off the receiver
ORRD receiver : the receiver can remain powered up throughout the procedure
2
ORRS and ORRA receivers : install the jumper to confi gure the settings.
ORRD receiver : set the microswitch to the «ON» position
R2
R3
R4
V1 V2 V3
JP1
JP2 JP3
V1 V2 V3
JP1
JP2
JP3
JP4
V1 V3 V2
JP3
ONOFF
JP1
JP2
ORRS ORRA ORRD
3
ORRS and ORRA receivers : Switch on the receiver
ORRD receiver : go to the next step
4
V2
and
V3
ORRA
ORRS
ORRD
LEDs blink 2 times then go off.
DRAFT a
