Jay electronique Orion OREL User Manual

- 91 -Orion - 324501H
DE
FREN

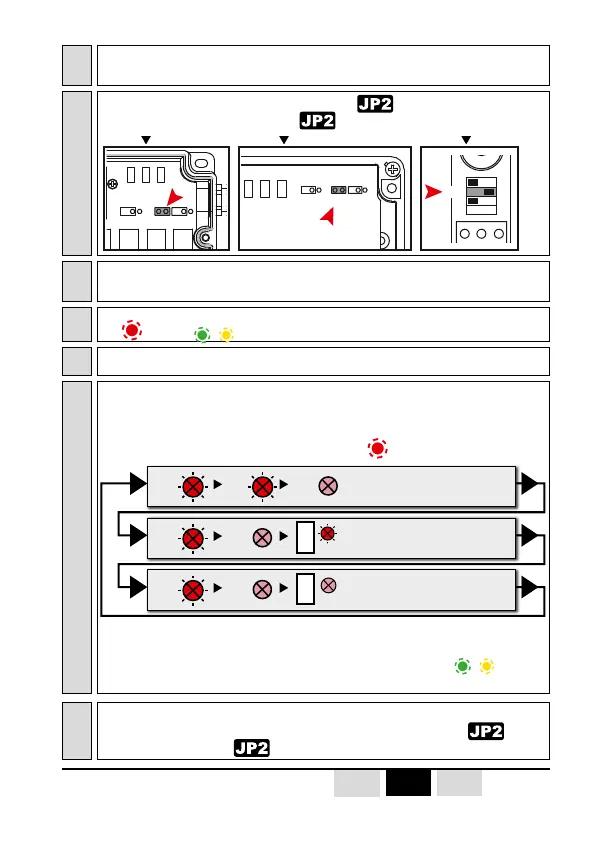

1
ORRS and ORRA receivers : Switch off the receiver
ORRD receiver : the receiver can remain powered up throughout the procedure
2
ORRS and ORRA receivers : install the jumper to confi gure the settings.
ORRD receiver : set the microswitch to the «ON» position
R2
R3
R4
V1 V2 V3
JP1
JP2
JP3
V1 V2 V3
JP1
JP2
JP3
JP4
V1 V3 V2
JP3
ONOFF
JP1
JP2
ORRS ORRA ORRD
3
ORRS and ORRA receivers : Switch on the receiver
ORRD receiver : go to the next step
4
V2
and
V3
ORRA
ORRS
ORRD
LEDs blink 3 times then go off.
5
If the transmitter has a «On/Off» button, turn on the transmitter.
6
Press and maintain the pressure (approximately 2 seconds) before releasing the
transmitter button wich associated relays must have a personalized operating mode.
Each maintained pressure (2 seconds) then loosened on the button will change the
current operating mode of associated relay(s),
V2
indicates the current mode:
« bistable »
Relay on Mode nb.3
« Continuous break contact »
«
Continuous make contact »
Relay on Mode nb.2
=
V2 V2 V2
=V2 V2
V2
Relay on Mode nb.1
=V2
relayrelay
Remark : If the pressure on the transmitter button is not maintained for a long
time (approximately 2 seconds) before being loosened
V3
ORRA
ORRS
ORRD
remains
switched on, indicating that the order of modifi cation did not correctly take place
7
Once the programming procedure is fi nished :
ORRS and ORRA receivers : switch off the receiver and remove the jumper
ORRD receiver : set the microswitch to the «OFF» position
