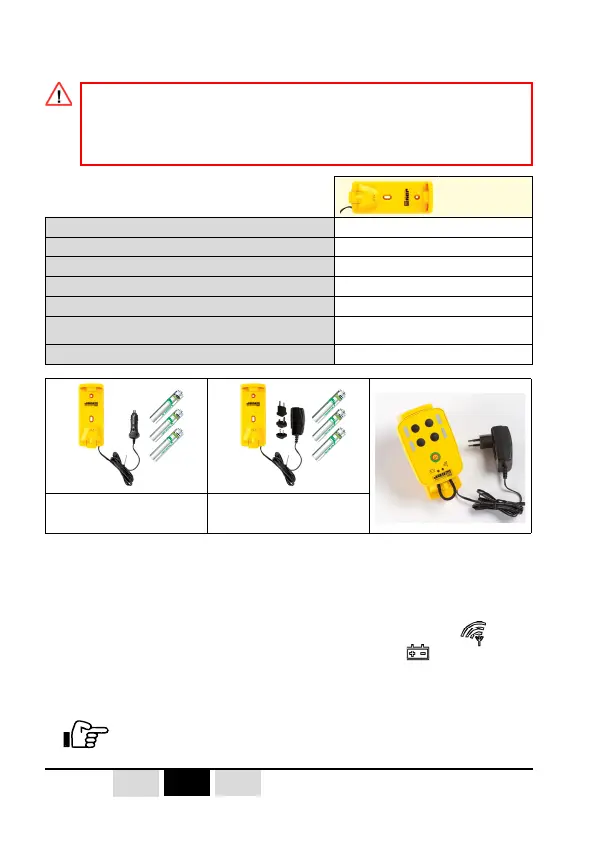

6.2- Charger supports
IMPORTANT : The charger supports can only be used with the
Multifunction Orion transmitters (ORELxxxxx) equipped with
AAA accumulators.
DO NOT CHARGE THE BATTERIES.
Charger support
(ORCL)
Material, housing color and tightness ABS, Yellow, IP20
Weight 400 g.
Supply by vehicle connector 12 to 20 VDC
Supply by «European» or «UK» connector 230 VAC
Output voltage and current 9 VDC, 300 mA
Temperature ranges
Storage : - 30°C to + 70°C
Charging : 0°C to + 40°C
Length of cable between voltage adapter and charger support 1,70 m approximately
ORCL1 / vehicle plug
(12-24VDC > 9VDC)
delivered with 3 accus AAA
ORCLU / EU, UK and US plugs
(230VAC > 9VDC)
delivered with 3 accus AAA
To recharge the Multifunction transmitter with accumulators :
1. Supply the charger support
2. if present, push on «On/Off» button to switch off the transmitter (red and
green indicator lights are OFF).
3. Place the transmitter on the charger support.
During the charging operation, the green indicator light on the transmitter ( ) comes
on steady and the red indicator light shows the charge level ( ) :
Red indicator light fl ashing : fast charge
Red indicator light on steady : slow or up-keep charge (transmitter
accumulator charge level is > or = 60%)
Radio controls cannot be generated when the transmitter is charging.
