- 83 -Orion - 324501H
DE
FREN
4
-
V2
and
V3
ORRA
ORRS
ORRD
are ON steady.

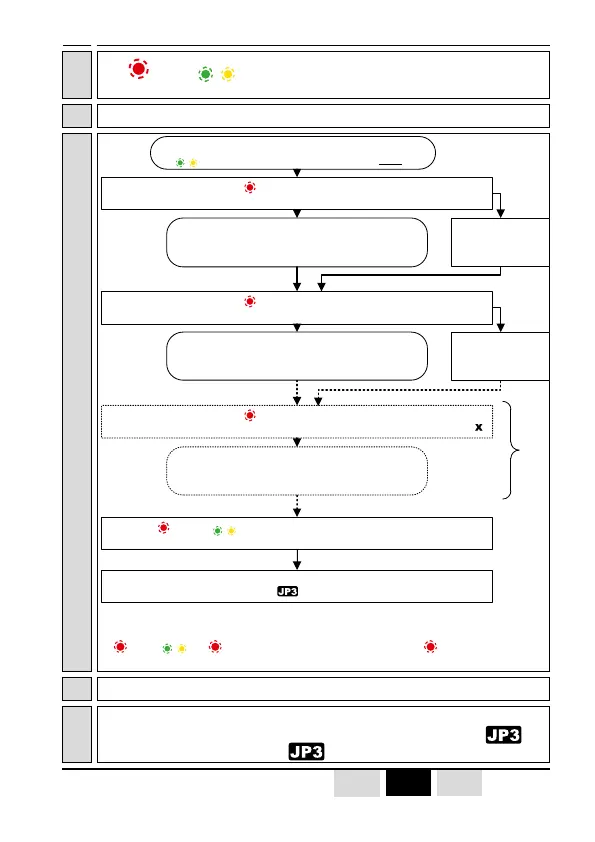

- The receiver is waiting for an order from the transmitter to start the buttons / relay assignment
5
If the transmitter has a «On/Off» button, turn on the transmitter.
6
- Press on and release any transmitter function button
-
goes OFF, the programming procedure starts
blinks 1 time
the receiver is waiting for a "button number and identity code" to "assign" them to its relay n°1
- Press on transmitter button n°1 (i.e) within 6,5 seconds
- The receiver records the assignment : "button nb.1 + identity
code (xxxxxxxx)" / relay nb.1
and blink in a alternative way then go OFF
The last relay of the receiver has been assigned, the procedure is ended.
blinks 1 times
the receiver is waiting for a "button number and identity code" to "assign" them to its relay n°2
if no button is
pressed within 6,5s
the receiver selects
the relay n°2
if no button is
pressed within 6,5s
the receiver selects
the relay n°X
blinks X times
the receiver is waiting for a "button number and identity code" to "assign" them to its relay
(1)
V2
V2
V2
V2
V2 V2 V2
V3
V3
ORRS and ORRA receivers : Switch off the receiver
ORRD receiver : set the microswitch to the «ON» position
(1) = Special case of ORRA receiver with number «X» > 9
In this case, the number of the relay to be programmed is given by the flashing indicator lights
and indicates the tens, and the units (i.e. : flashes once and
flashes 5 times: the receiver is on standby for a «button + identity code» assignment for its relay No. 15).
V3
ORRA
ORRS
ORRD
V3
ORRA
ORRS
ORRD
V3
ORRA
ORRS
ORRD
- Press on transmitter button n°2 (i.e) within 6,5 seconds
- The receiver records the assignment : "button nb.2 + identity
code (xxxxxxxx)" / relay nb.2
- Press on transmitter button n°Y (i.e) within 6,5 seconds
- The receiver records the assignment : "button nb.Y + identity
code (xxxxxxxx)" / relay nb.X
7
If other associations are required, repeat the procedure in step N°3
8
Once you have completed the associations :
ORRS and ORRA receivers : switch off the receiver and remove the jumper
ORRD receiver : set the microswitch to the «OFF» position
