Jay electronique Orion OREL User Manual

- 87 -Orion - 324501H
DE
FREN

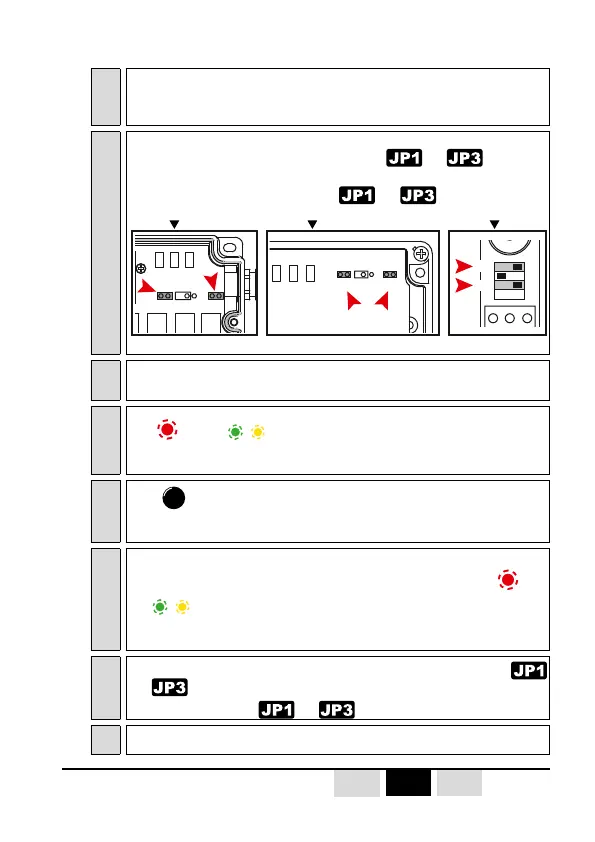

1
ORRS and ORRA receivers : Switch off the receiver
ORRD receiver : the receiver can remain powered up throughout the procedure
2
ORRS and ORRA receivers : install the jumpers and to confi gure
the settings.
ORRD receiver : set the microswitches and to the «ON» position
R2
R3
R4
V1 V2 V3
JP1
JP2
JP3
V1 V2 V3
JP1
JP2
JP3
JP2
JP4
V1 V3 V2
JP3
ONOFF
JP1
ORRS ORRA ORRD
3
ORRS and ORRA receivers : Switch on the receiver
ORRD receiver : go to the next step
4
-
V2
and
V3
ORRA
ORRS
ORRD
LEDs are blinking.
- The receiver waits for an identity code reception (pressure on a transmitter
function button) to auto-confi gure its relays.
5
Press
Bx
then press the « On/Off » button (for the Rx association) or on the «
On/Off » button only (for R0 association), then release the buttons.
x = 1 to 12
6
Press on one transmitter button (anyone) and maintain button pressed to
associate transmitter with the receiver, until receiver LEDs
V2
and
V3
ORRA
ORRS
ORRD
go off.
The receiver has received the command to assign the buttons and identity code
of the transmitter to the function relays.
7
ORRS and ORRA receivers : switch off the receiver and remove the
and jumpers.
ORRD receiver : set the
and microswitches to the «OFF» position
8
Repeat the association procedure for each receiver to be associated
