8.4 - STACKING THE VTX A12 VT WITH THE VT-TOP

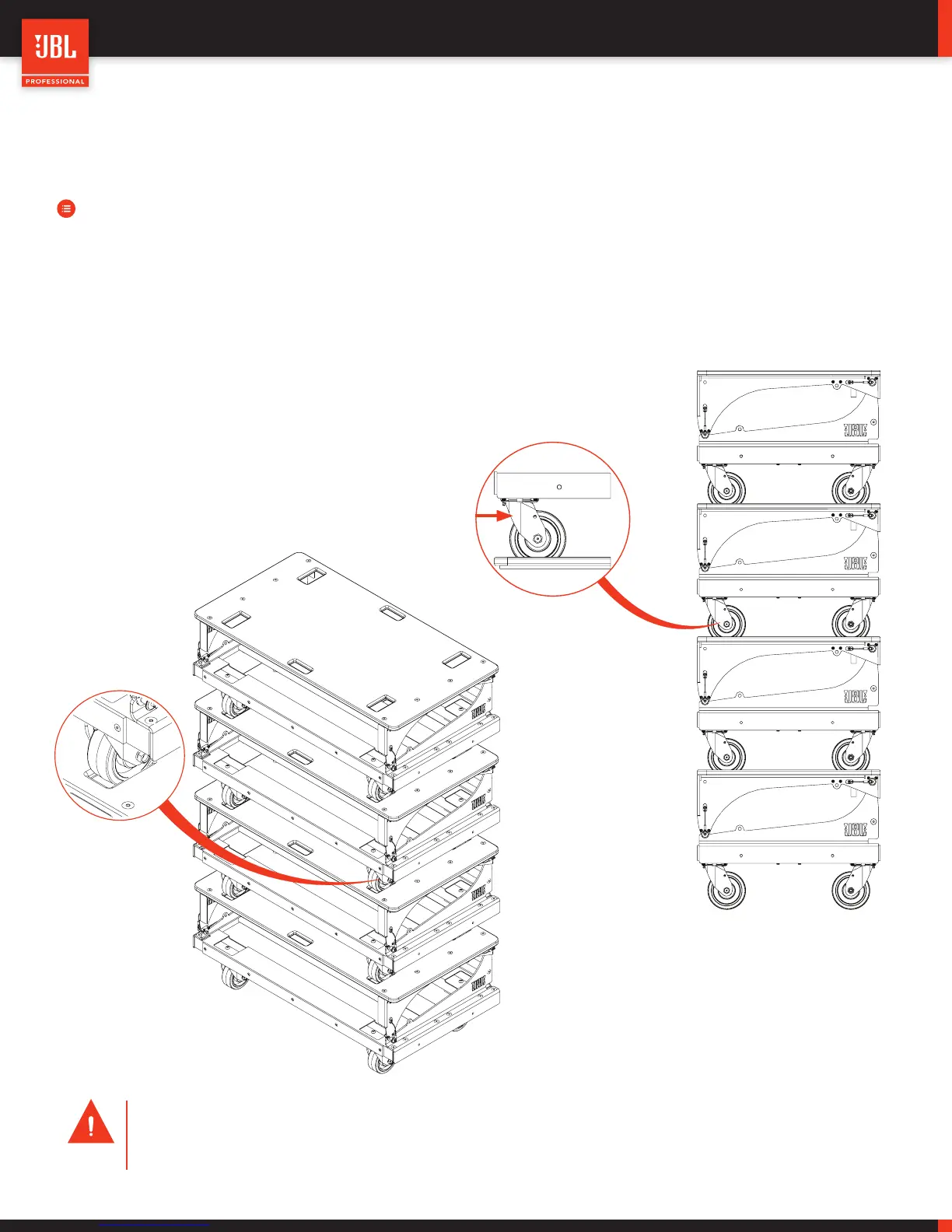

When the VTX A12 VT and VT-TOP are connected, several assemblies can be stacked together for storage.
STEPS:
• Rotate the VT wheels so that the wheels are pointed to the inside of the VT
• Line up the wheels with the VT-TOP stacking cups
• Stack the two parts together
• Repeat until all VTs are stacked together
CAUTION:
• Make sure the VT and VT-TOP are pinned together and secure before stacking.
• No more than 4 x VTs should be stacked together

JBL VTX A12 Specifications

General

Nominal Impedance	8 ohms
Horizontal Coverage	90 degrees
Input Connectors	Neutrik NL4
Type	3-way
LF Driver	12"
MF Driver	4 x 5"
HF Driver	3 x 2"
Enclosure Construction	Plywood
Coverage Pattern	90° horizontal
Drivers	LF: 3 x 12", MF: 4 x 5", HF: 3 x 2"
Enclosure Material	Plywood
