9.3 - ATTACHING THE EXTENSION BAR

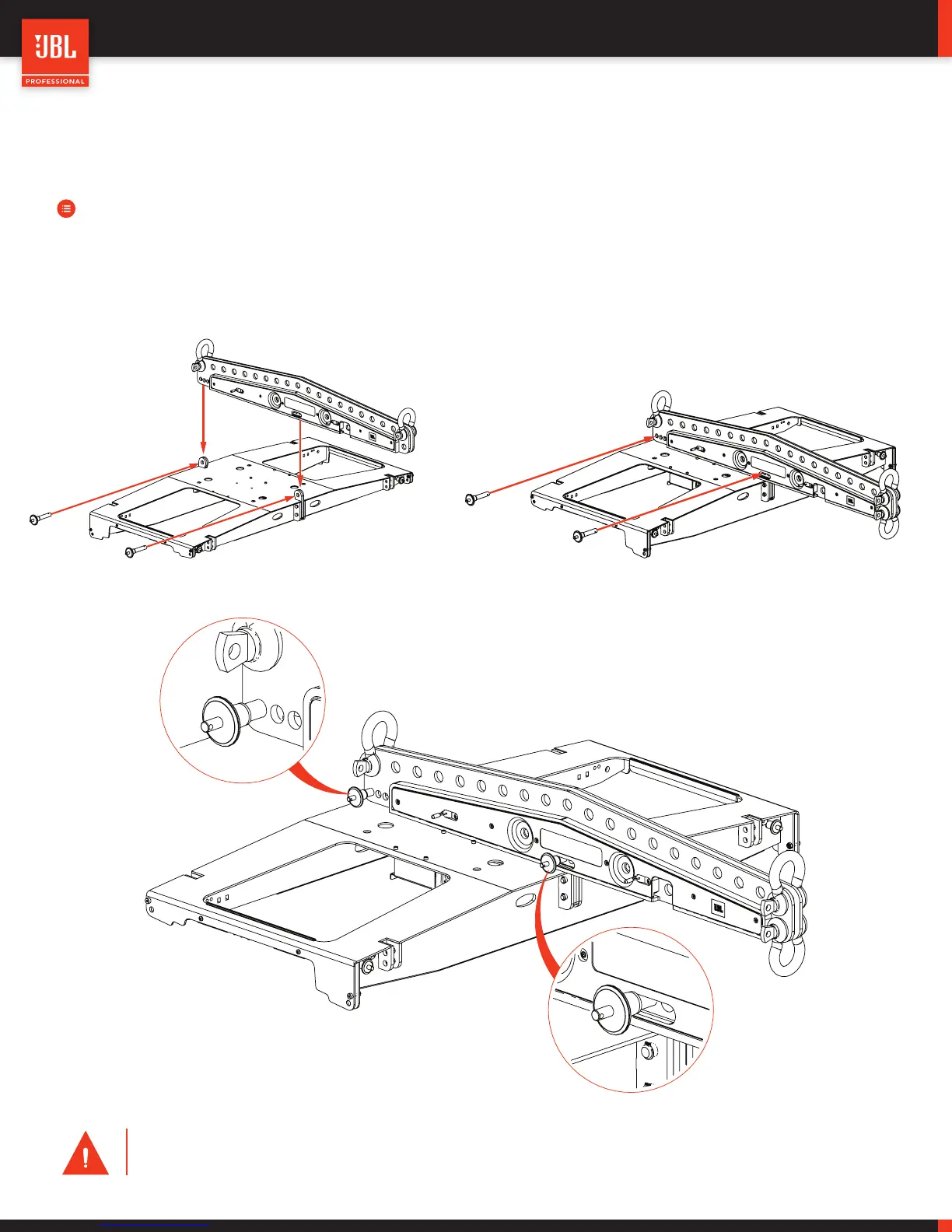

The Extension Bar includes two tab positions and two Quick Release Pins for connecting to the Array Frame.

STEPS:

• First, line up the Extension Bar with the connection tabs on the Array Frame

• Lower the Extension Bar on to the Array Frame

• Use the two included Quick Release Pins to secure the Extension Bar to the Array Frame

CAUTION: Always use both included Quick Release Pins to attach the Extension Bar to the Array Frame. Inspect both

connection points before suspending an array
