8 - A12 VT AND TRANSPORTATION

The VTX A12 Vertical Transporter is used to transport VTX A12 cabinets in groups of 4. When stacked on the VT, all 4 cabinets

are set to the 10-degree (STORAGE), position which secures the rigging system for transportation. The optional VTX A12 VT CVR

cover can be used for additional protection.

8.1 - INSTALLING VTX A12 CABINETS ON A VTX A12 VT

At the ﬁrst time of use, VTX A12 cabinets should be installed on the VTX A12 VT one by one starting with the lowermost cabinets.

STEPS:

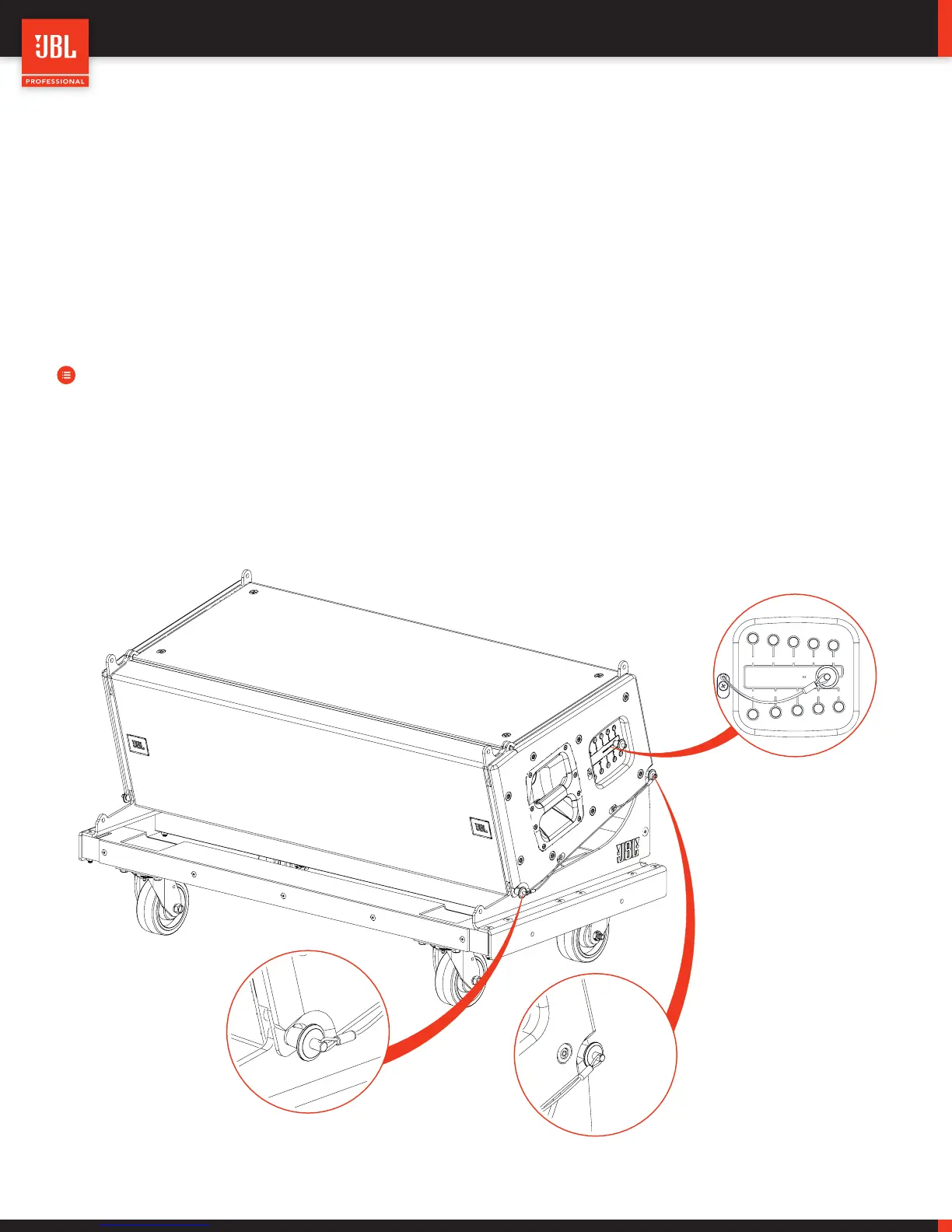

• Start by installing the ﬁrst VTX A12 cabinet to the VTX A12 VT

• Use the 4 front and rear A12 Quick Release Pins to secure the cabinet on to the Vertical Transporter

• Set the A12 cabinet to the 10-degree (STORAGE) position and set the red locking lever to the locked position

1°

2.5° 3° 4° 6° 8°

10°STORAGE

2° 1.5° .5°.25°
