VT X A12 | Rigging Manual
23

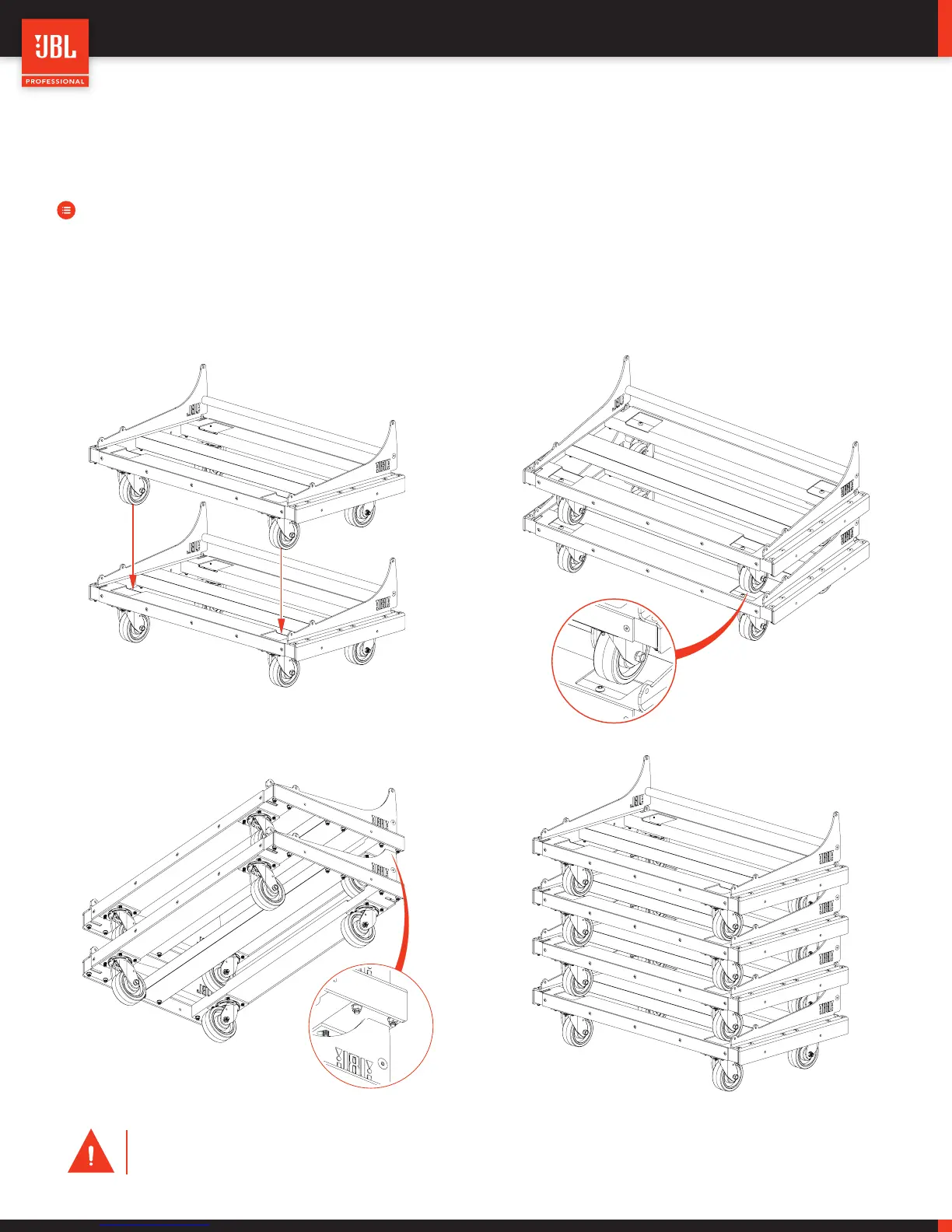

8.5 - STACKING THE VTX A12 VT
If necessary, the VTX A12 VT can be stacked for storage without using the VT-TOP.
STEPS:
Rotate the VT wheels so that the wheels are pointed to the inside of the VT
Line up the wheels
Stack the two parts together
Repeat until all VTs are stacked together
CAUTION: Make sure no more than 8 x VTX A12 VTs are stacked together to maintain a good balance and stability
