VT X A12 | Rigging Manual
47
PRELIMINARY

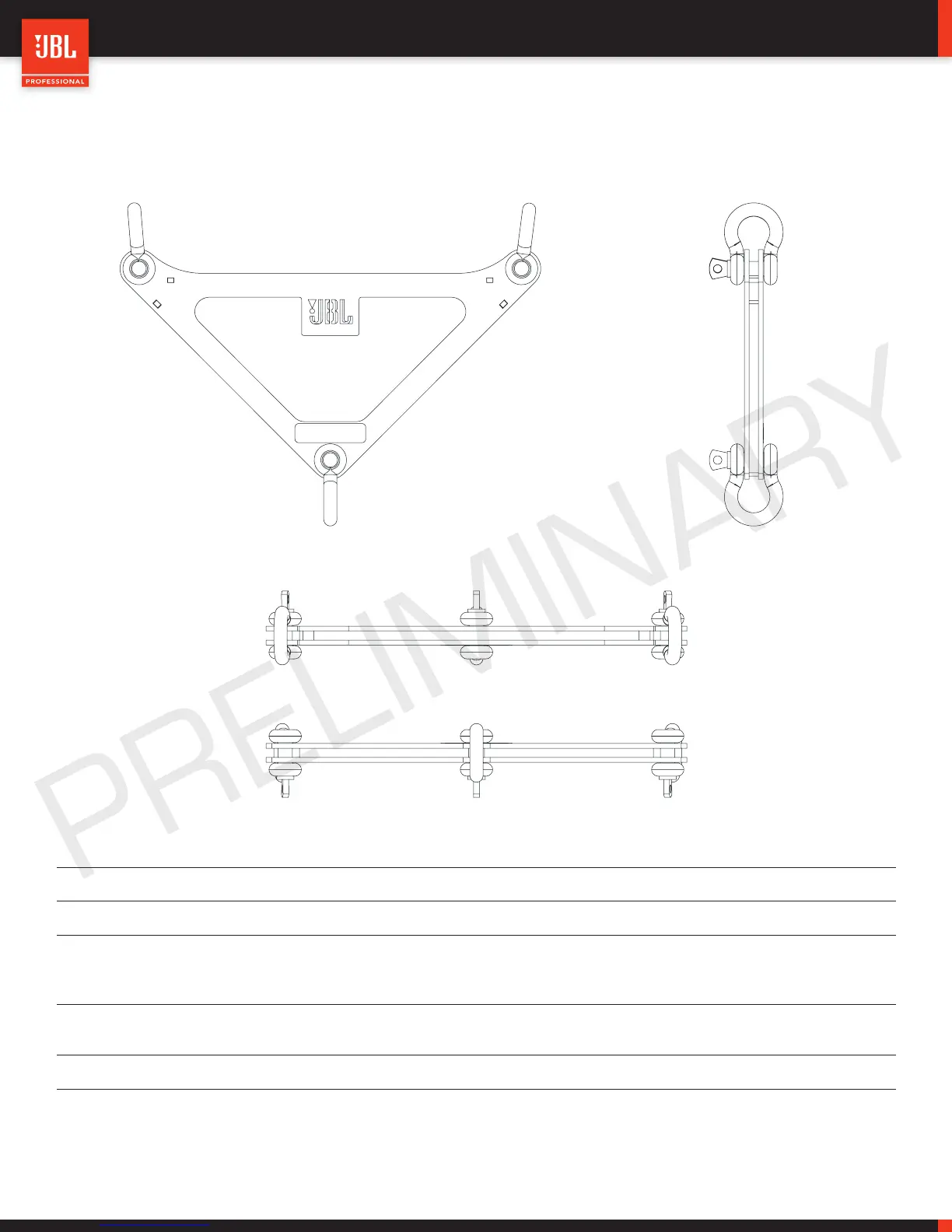

10.4 - VTX DELTA
Footnotes:
1: For arrays larger than the safe limit always use the JBL Line Array Calculator to determine mechanical safety
2: Refer to the 2D and 3D Customer Drawings for more detailed dimensions
3: Array Frame, shackles and other rigging parts not included
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that
philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
Construction:
Steel with anti-corrosion coating
Finish:
Black Powder Coat
Mechanical Limits
1
Maximum :
Safe Limit :
NA x VTX A12
NA x VTX A12
Dimensions (H x W x D)
2
:
157.48mm x 558.00 mm x 24.90 mm
(6.20 in x 22.00 in x 0.98 in)
Net Weight
3
:
NA

JBL VTX A12 Specifications

General

Nominal Impedance	8 ohms
Horizontal Coverage	90 degrees
Input Connectors	Neutrik NL4
Type	3-way
LF Driver	12"
MF Driver	4 x 5"
HF Driver	3 x 2"
Enclosure Construction	Plywood
Coverage Pattern	90° horizontal
Drivers	LF: 3 x 12", MF: 4 x 5", HF: 3 x 2"
Enclosure Material	Plywood
