VT X A12 | Rigging Manual

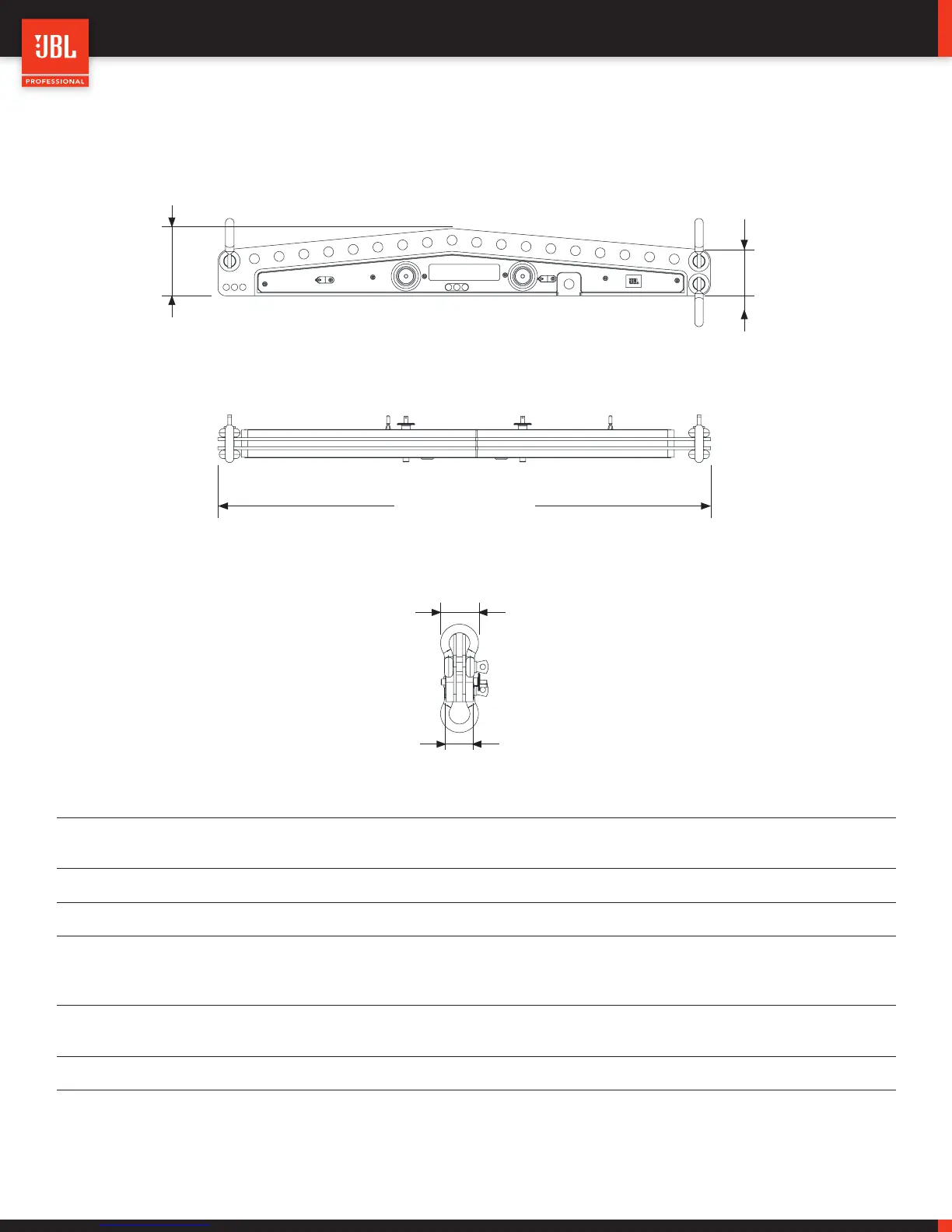

45
90.17mm (3.55”)
137.66mm (5.42”)
1012.95mm (39.88”)
55.88mm (2.20”)
77.72mm (3.06”)
Construction:
High-grade steel with anti-corrosion coating
Plastic covers
Finish:
Black Powder Coat
Compatible Shackle Size:
5/8”
Mechanical Limits
1
Maximum :
Safe Limit :
24 x VTX A12
12 x VTX A12
Dimensions (H x W x D)
2
:
137.66mm x 1012.95 mm x 55.88 mm
(6.42 in x 39.88 in x 3.06 in)
Net Weight
3
:
13.6 kg (30 lbs)
Footnotes:
1: For arrays larger than the safe limit always use the JBL Line Array Calculator to determine mechanical safety
2: Refer to the 2D and 3D Customer Drawings for more detailed dimensions
3: Array Frame, shackles and other rigging parts not included
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that
philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
10.2 - VTX A12 AF EB
