VT X A12 | Rigging Manual
25
9 - ARRAY FRAME AND EXTENSION BAR
The VTX A12 AF is a lightweight Array Frame used for suspending VTX A12 Series enclosures. The frame was designed to operate
in either single-point, front-to-back or side-by-side suspension modes using the VTX A12 AF EB Extension Bar. One Extension Bar is
included with the frame and a second extension bar can be added to facilitate side-by-side suspension.

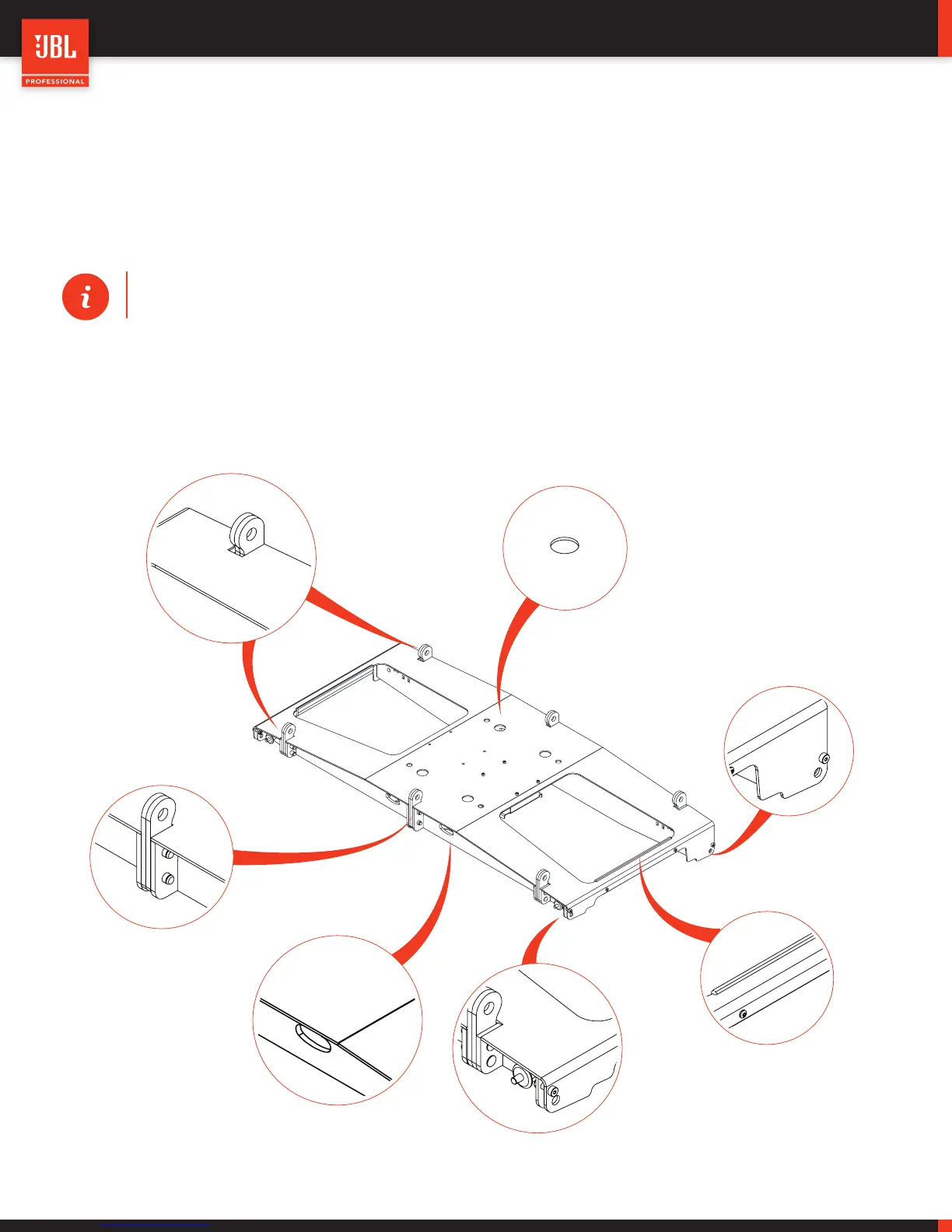

9.1 - ARRAY FRAME OVERVIEW
FRONT EXTENSION BAR
ATTACHMENT POINT
ARRAY FRAME HANDLE
VTX A12 CONNECTION POINT
EXTENSION BAR
STORAGE POSITION
LASER LIGHT
EXIT HOLE
TIP: One VTX A12 AF Extension Bar is always required when using the VTX A12 AF
EXTENSION BAR
CONNECTION TABS
VTX A12 CONNECTION POINT

JBL VTX A12 Specifications

General

Nominal Impedance	8 ohms
Horizontal Coverage	90 degrees
Input Connectors	Neutrik NL4
Type	3-way
LF Driver	12"
MF Driver	4 x 5"
HF Driver	3 x 2"
Enclosure Construction	Plywood
Coverage Pattern	90° horizontal
Drivers	LF: 3 x 12", MF: 4 x 5", HF: 3 x 2"
Enclosure Material	Plywood
