OK
Menu
Back/Help
4. Setting Method

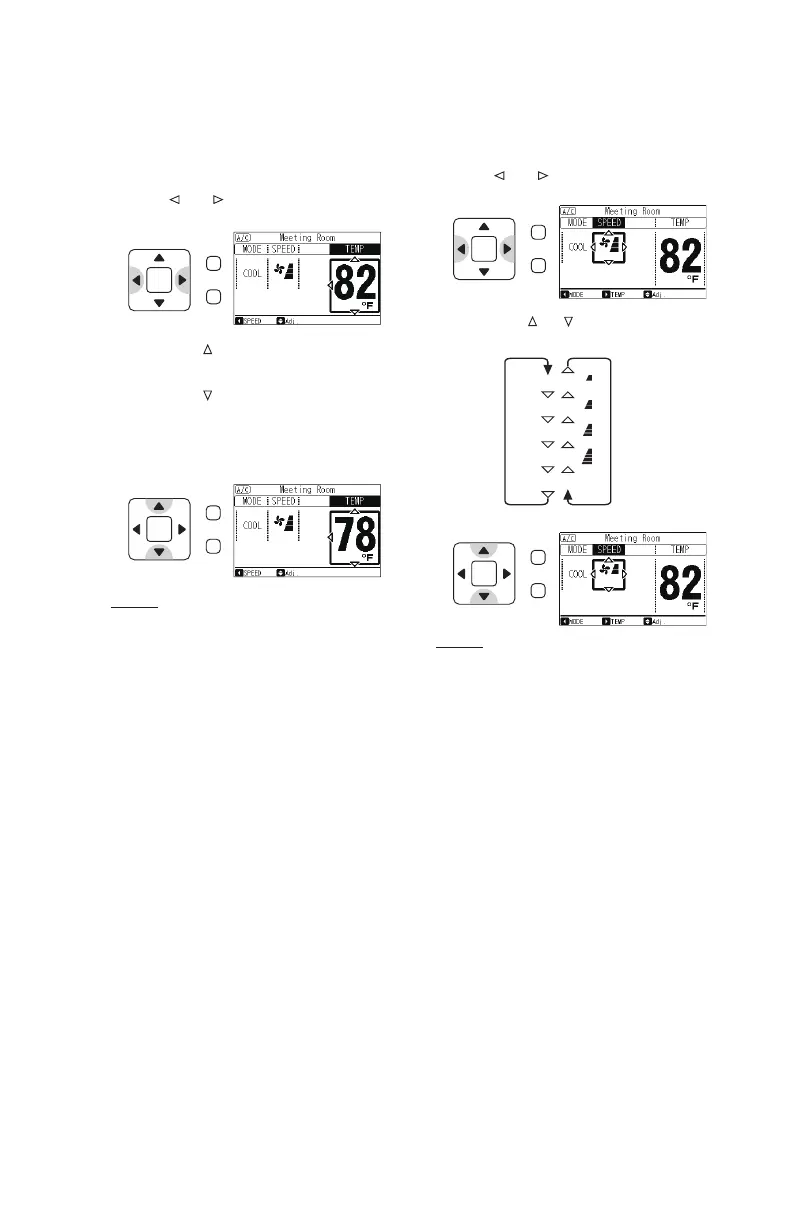

4.1 Temperature Setting
(1) Press “ ” or “ ” and select “TEMP”.
(2) By pressing “
”, the temperature is
increased by 1
o
F (0.5
o
C) to a maximum of
86
o
F (30
o
C).
By pressing “
”, the temperature is
decreased by 1
o
F (0.5
o
C).
Cooling, Dry, Air Flow operation:
A minimum of 66
o
F (19
o
C)
Heating operation: A minimum of 62
o
F (17
o
C)
NOTES:
• Depending on the type and setting of the
indoor unit, it may not be possible to set the
temperature by 1
o
F (0.5
o
C).
• The max./min. temperature may differ
depending on the type of indoor unit.
• Minimum and maximum temperature set-
point limits can be confi gured by selecting a
cooling lower limit and heating upper limit in
the “Function Selection” mode of the wired
controller’s Test Run Menu.
• When the “Automatic Reset of Setting
Temperature” function is selected at
function selection “F3”, the temperature
is automatically returned to the preset
temperature after the temperature set-point
change. You can choose reset time from 15,
30, 60, or 90 minutes.
• Refer to Installation Manual and Service
Manual for detailed information about
“Automatic Reset of Setting Temperature”
and “Cooling Lower Limit Value and Heating
Upper Limit Value for Setting Temperature”
functions.
4.2 Fan Speed
(1) Press “ ” or “ ” and select “SPEED”.
(2) By pressing “
” or “ ”,
the fan speed changes as follows.
NOTES:
• During dry operation, the fan speed is
automatically changed to “LOW” and cannot
be changed to another fan speed. (“LOW” is
NOT displayed on the liquid crystal display
(LCD) at this time. The present setting
condition is displayed on the LCD.)
• The fan speed settings “HIGH 2” and “AUTO”
may not be available depending on the indoor
unit type.
OK
Menu
Back/Help
HIGH 2
HIGH
MEDIUM
LOW
AUTO







OK
Menu
Back/Help
OK
Menu
Back/Help
