29

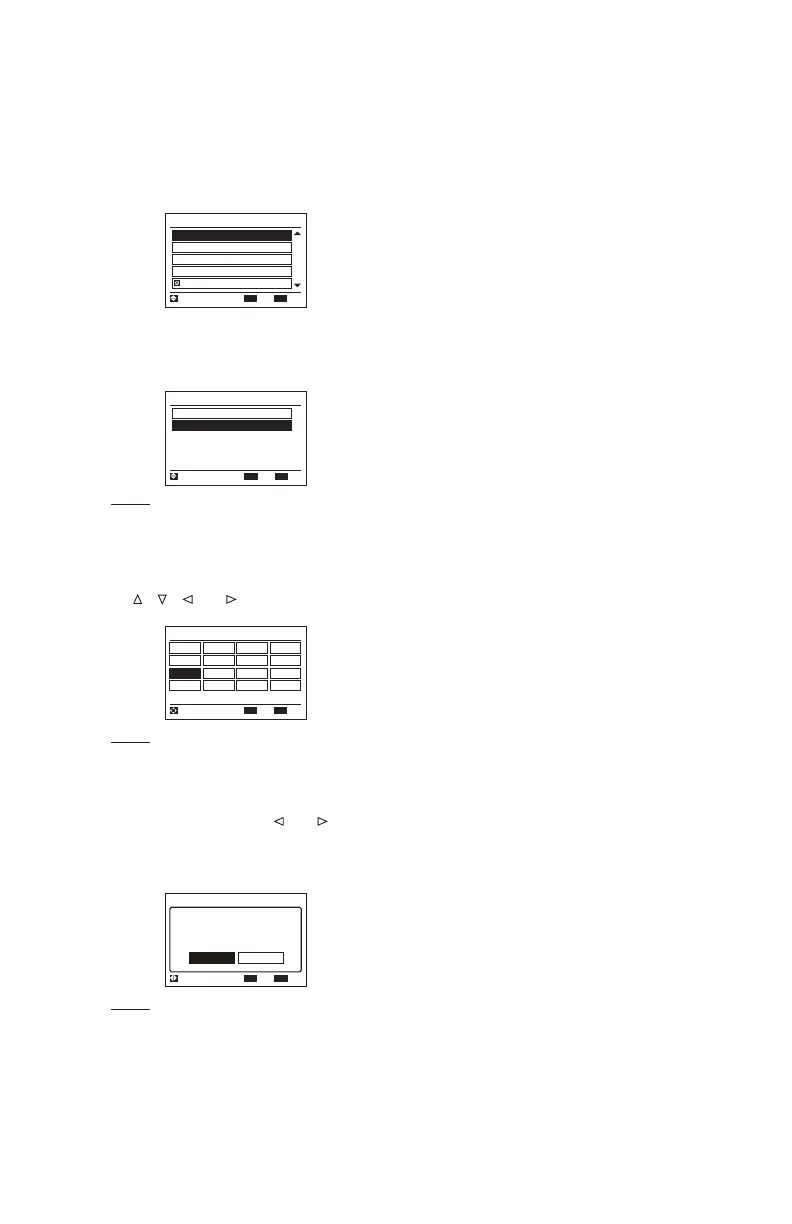

(4) The con rmation screen is displayed.
Select “Yes” by pressing “
” or “ ” and
press “OK”. The individual louver setting is
cancelled and the screen returns to normal
mode.
8.11.2 Cancellation of Louver Setting
(1) Select “Individual Louver Setting” from the
“Menu” and press “OK”.
(2) Select “Cancel INDV Louver SET” from the
“Individual Louver Setting” screen and press
“OK”.
(3) Select the indoor unit to cancel by pressing
”, “ ”, “ ” or “ ”. Press “OK”.
8.12 Louver Open/Close
This function is unnecessary to set.
Menu
Function 15
Total Heat Exchanger SET
VENTI
Louver Open/Close
03
/
05
Individual Louver Setting
15:10(Fri)
Entr Rtrn
Sel.
Back
OK
Back
OK
Cancel INDV Louver SET
Individual Louver Setting
Individual Louver Setting
Entr Rtrn
Sel.
Back
OK
Cancel individual
louver setting?
Cancel INDV Louver SET:01-03
Yes No
Sel.
Entr Rtrn
Back
OK
Cancel INDV Louver SET
01-01
01-02
01-03
Select unit to cancel.
01-04
Entr RtrnSel.
NOTE:
If there is one indoor unit connected with the
controller, four individual louvers are displayed.
NOTE:
The indoor unit displayed on the screen ashes
if the individual louver is set.
NOTE:
All the individual louver settings are canceled.
8.13 Ventilation
This function is unnecessary to set.
8.14 Setting of Total Heat Exchanger
This function is unnecessary to set.
