8
P5415479
6. Operation Lock
This function is used to lock a setting.
The following functions are applicable.
(a) Operation Mode (MODE)
(b) Temperature Setting (TEMP)
(c) Fan Speed (SPEED)
(d) Louver Swing Direction (LOUV.)
NOTE:
When “Lock function for operation mode
selection” is selected, the operation lock
performs the following procedures

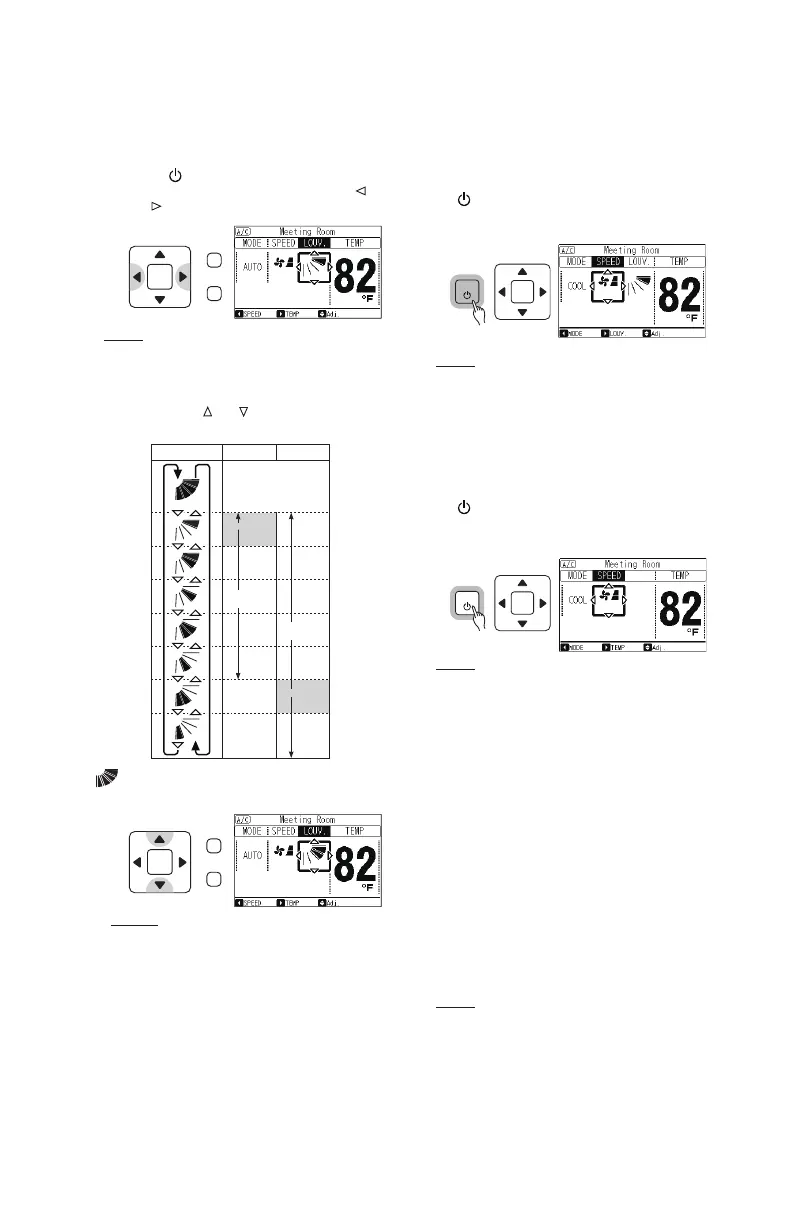

4.3 Louver Swing Direction
(1) Press ” (On/Off).
Make sure that the power is ON. Press “
or “
” and select “LOUV.”.
NOTE:
For the indoor unit without the auto louver
mechanism, the indication of “LOUV.” is NOT
displayed on the LCD.
(2) By pressing “
” or “ ”, the louver direction
changes as follows.
NOTES:
• The air ow angle is different for each indoor
unit type. Check for detailed information in
“Swing Louver Direction” of each operation
manual for indoor unit.
The louver position on the LCD and the actual
louver position may not match during the auto
swing operation.
To set the louver positions, set the angle after
checking the position on the LCD.
• The louver may NOT stop immediately after
the switch is pressed.
5. Operation
5.1 Operation Start
Press “ ” (On/Off).
The run indicator turns on and the operation starts.
NOTE:
Temperature/Air Flow Setting
Temperature set-point and air ow settings are
retained after the indoor unit is turned off at the
controller. If a setting change is required, refer
to Sections 3.1 to 4.3.
: Auto swing operation starts. At this time, the
louver swings repeatedly on the LCD.
Recommended
Angle
Auto-Swing
Recommended
Angle
Angle
Range
Angle
Range
LCD Indication COOL, DRY HEAT, FAN
OK
On/Off
OK
On/Off
NOTE:
The indoor unit fan may continue to operate for
up to two minutes following the heating cycle to
dissipate residual heat from the indoor unit.
5.2 Operation Stop
Press “ ” (On/Off) again.
The run indicator is turned off and the operation
stops.
OK
Menu
Back/Help
OK
Menu
Back/Help
