(3) Select the indoor unit to change the louver
direction by pressing “
”, “ ”, “ ” or “ ”.
Press “OK”.
(4) Press “
” or “ ” and select the louver from
1 to 4. The selected louver is opened and
the other louvers are closed.
(5) Select the louver angle by pressing “
” or
“
” and press “OK”.
(6) The confi rmation screen is displayed.
Select “Yes” by pressing “
” or “ ” and
press “OK”. The setting is confi rmed and the
screen returns to normal mode.
(7) Ensure that “INDV” is turned on at the air
fl ow section on the normal mode.
Back
OK
Individual Louver Setting
01-01
01-02
01-03
Select unit to set.
01-04
Entr RtrnSel.
Back
OK
Individual Louver Setting:01-03
Adjust air direction & louver angle.
1 2 34
Entr RtrnSel. Adj.
Back
OK
Individual Louver Setting:01-03
Adjust air direction & louver angle.
1 2 34
Entr RtrnSel. Adj.
Back
OK
Individual Louver Setting:01-03
Yes No
Sel.
Entr Rtrn
Fix individual louver setting?
NOTE:
The louver direction without “INDV” complies
with the setting of the normal mode.
INDVINDVINDVINDVINDVINDVINDVINDV
NOTE:
The indoor unit displayed on the screen fl ashes
if an individual louver is set.
The louver angle is changed as follows.

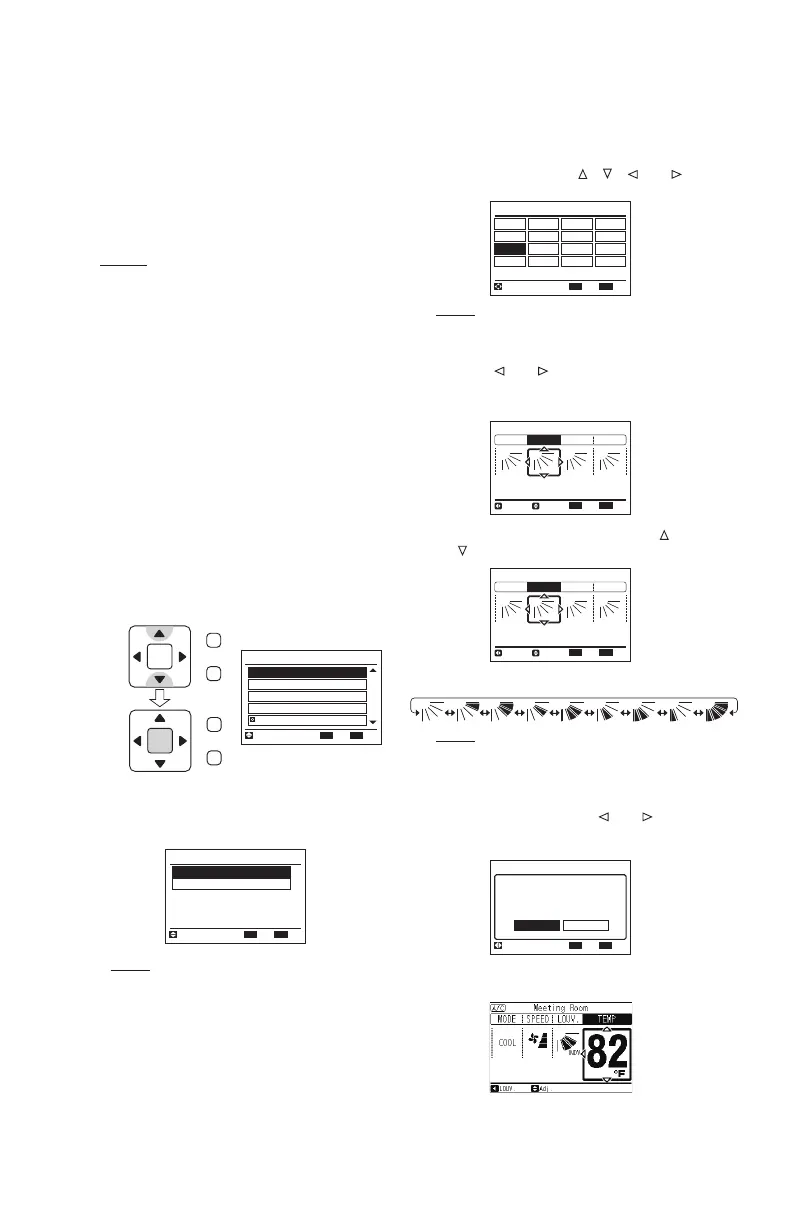

8.11 Individual Louver Setting
8.11.1 Setting
This setting is available only for indoor units that
allow an individual louver control. Each louver
angle can be set individually.
NOTES:
• This function is available only when the indoor
unit corresponds to an individual louver.
• This function cannot be set if the unit is stopped.
• The fan speed changes to “LOW” while this
function is being set. (After the setting is
completed, the unit operation is back to normal.)
• As for “Start-up of Heating Operation”, “During
Defrost Operation” and “Activation of Thermo-
Controller”, all the louver angles are secured
horizontally automatically when this function is
activated.
• This function is not available if two controllers
(including a combination of wired controller +
wireless controller) are used.
(1) Select “Individual Louver Setting” from the
“Menu” and press “OK”.
The “Individual Louver Setting” menu is
displayed.
(2) Select “Individual Louver Setting” from the
“Individual Louver Setting” menu and press
“OK”.
Menu
Function 15
Total Heat Exchanger SET
VENTI
Louver Open/Close
03
/
05
Individual Louver Setting
15:10(Fri)
Entr Rtrn
Sel.
Back
OK
Back
OK
Cancel INDV Louver SET
Individual Louver Setting
Individual Louver Setting
Entr RtrnSel.
NOTE:
If there is one indoor unit connected with the
controller, four individual louvers are displayed.
OK
Menu
Back/Help
OK
Menu
Back/Help
To Next Page
