34
P5415479

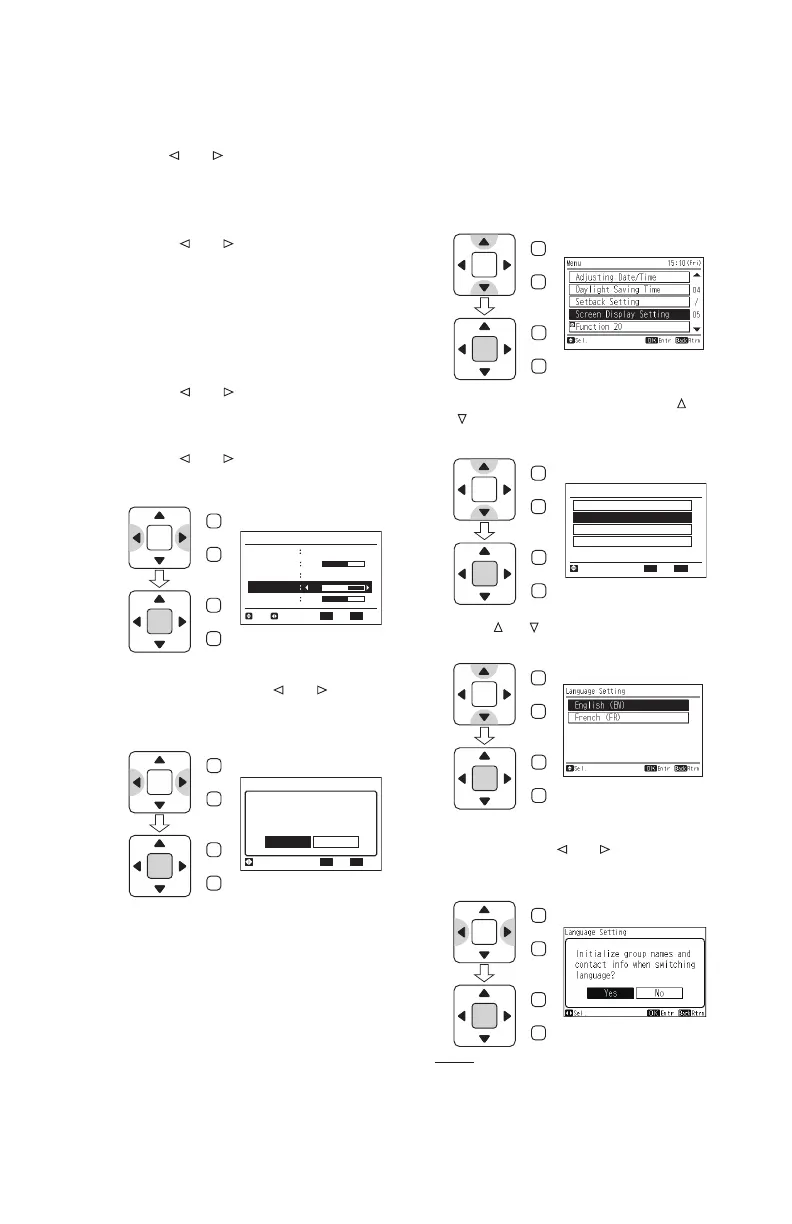

(4) Press ” or “ ” and set the display.
(5) Select “Yes” by pressing “
” or “ ” and
press “OK”. The setting is con rmed and the
screen returns to normal mode.
Contrast 10
Time Format 24Hour(11:04)
Back light 15 Seconds
Brightness 10
Display Adjustment
On/Off lamp 10
Entr RtrnSel. Adj.
OK
Back
OK
Save changes to
screen display setting?
Display Adjustment
Yes No
Sel.
Entr Rtrn
Back
Time Format:
The time format changes as follows:
12 Hour 24 Hour
Brightness:
Press “
” or “ ” and the brightness of the
backlight is changed.
Backlight:
The display backlight is OFF after a
speci ed time of inactivity (no input from
touchscreen). The backlight off time
interval can be selected as follows;
5 Seconds 15 Seconds 30 Seconds
Contrast:
Press “
” or “ ” and the degree of
difference between light and dark elements
of the LCD is changed.
On/Off lamp:
Press “
” or “ ” and the brightness of the
run indicator is changed.
OK
Menu
Back/Help
OK
Menu
Back/Help
OK
Menu
Back/Help
OK
Menu
Back/Help
(4) The con rmation screen is displayed. Select
“Yes” by pressing “
” or “ ” and press “OK”.
The setting is con rmed and the screen
returns to normal mode.
(3) Press
” or “ ” to select the language and
press “OK”.
8.18.2 Language Setting
This function changes the displayed language.
NOTE:
If displayed language is changed, the registered
room name and contact information is deleted.
(1) Select “Screen Display Setting” from the
“Menu” screen and press “OK”.
(2) Select “Language Setting” by pressing “ ” or
” and press “OK”.
The language setting is displayed.
Screen Display Setting
Main/Sub Display
Temperature Unit
Language Setting
Display Adjustment
Entr Rtrn
Sel.
Back
OK
OK
Menu
Back/Help
OK
Menu
Back/Help
OK
Menu
Back/Help
OK
Menu
Back/Help
OK
Menu
Back/Help
OK
Menu
Back/Help
OK
Menu
Back/Help
OK
Menu
Back/Help
