Johnson Controls Frick RWB II User Manual

RWB II ROTARY SCREW COMPRESSOR UNITS
INSTALLATION
070.200-IOM (DEC 11)
Page 17
CONTROL POWER REGULATOR
Compressor units that will be used in areas that suffer brown‑
outs and other significant power fluctuations can be supplied
with a control power regulator. See the following illustration,
Recommended Regulator Installation.

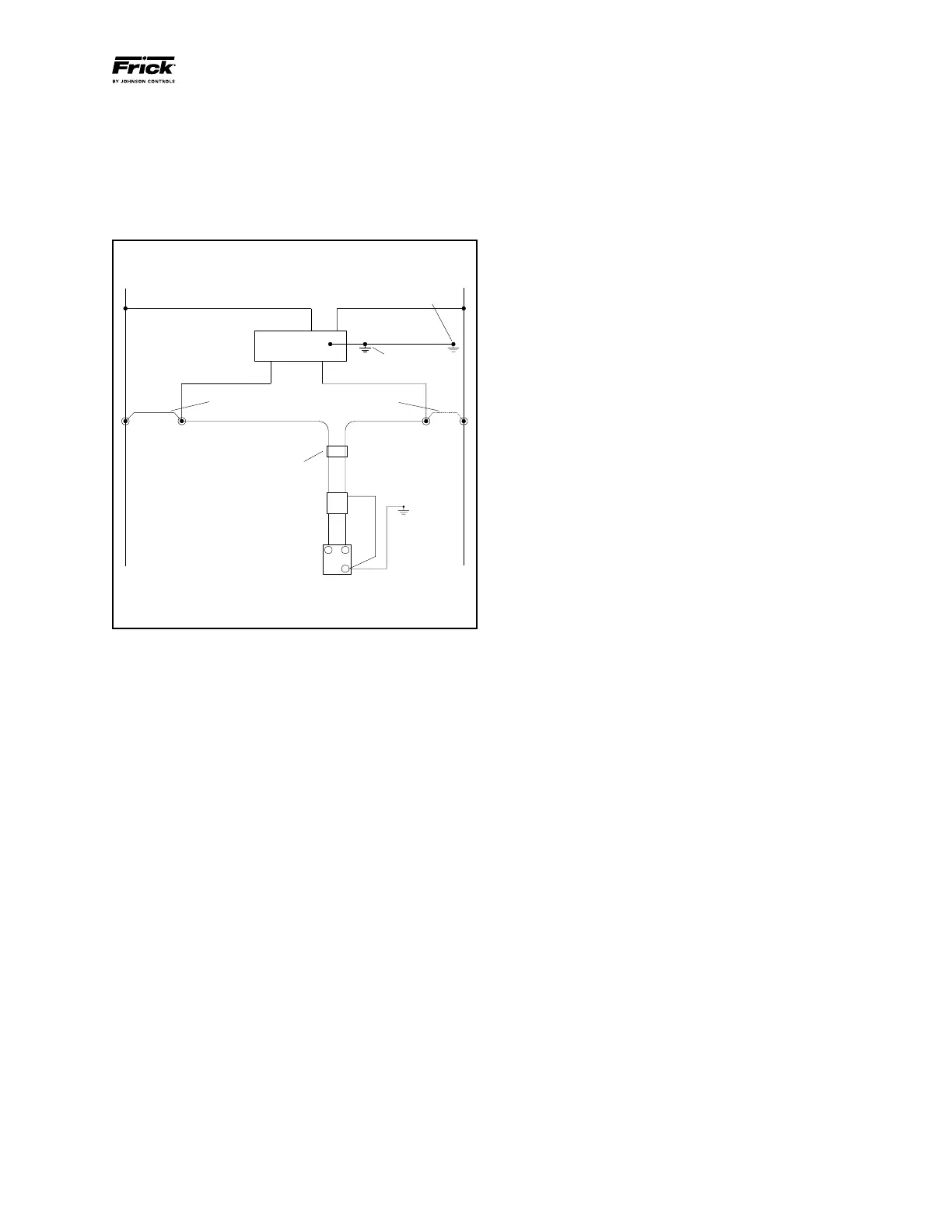

RECOMMENDED REGULATOR INSTALLATION
REMOVE JUMPERS 6 TO 6B & 2 TO 2B
DC POWER
EMI FILTER
SUPPLY
SEE SOLA CONNECTION CHARTS FOR
INPUT & OUTPUT CONNECTIONS
6
REMOVE FERRITE TUBE
WHEN SOLA IS ADDED,
6B
6
H
NOTE: AT SOLA ASSEMBLY, MAKE WIRES 6, 2, GND, 6B, & 2B,
10 FT LONG. CUT WIRES TO LENGTH AT INSTALLATION
H5
REGULATOR
H3H4
OUTPUT
INPUT
X1
120/240 V. IN, 120 V. OUT
SOLA #63-23-112-4, 120 VA, 60 HZ
SHOWN HERE- CONSULT FRICK
FOR OTHER VOLTAGES/HZ
SOLA ENCLOSURE
GND TERM
2A6A
23
PS 1
1
LINE
LOAD
GREEN
FERRITE
TUBE
2B
2
GND LUG IN
H2 H1
LUG
X2
GREEN
GND TERM
IN MICRO
2
N
Figure 16
BATTERY BACKUP
The battery backup is used only for date and time retention
during power interruption. All setpoints and other critical
information are saved to onboard flash memory.
NOTE: It is not necessary to disconnect the battery
backup during extended downtime.
