Hardware Installation—Installing the IFC-1010/2020
115
P1
P4
SIB-2048
or SIB-NET
50 feet Maximum
(Typical)
Wiring distance limited by cable
capacitance. See EIA-232E standard.
nc
73
Plug this DB-25 connector into the
EIA-232 port of the printer.
Twisted Pair
Twisted Pair
PRN-4 Remote Printer
sibcx
2
1
SIB (Connector P3)
EIA-232 Reference
Transmit to Printer
EIA-232 Reference
Receive from Printer
1
2
3
4
Notes:
Outputs are power-limited but not supervised.
Make connections with overall foil/braided shield twisted pair cable.
Near Letter Quality (NLQ) mode cannot be employed on this printer.

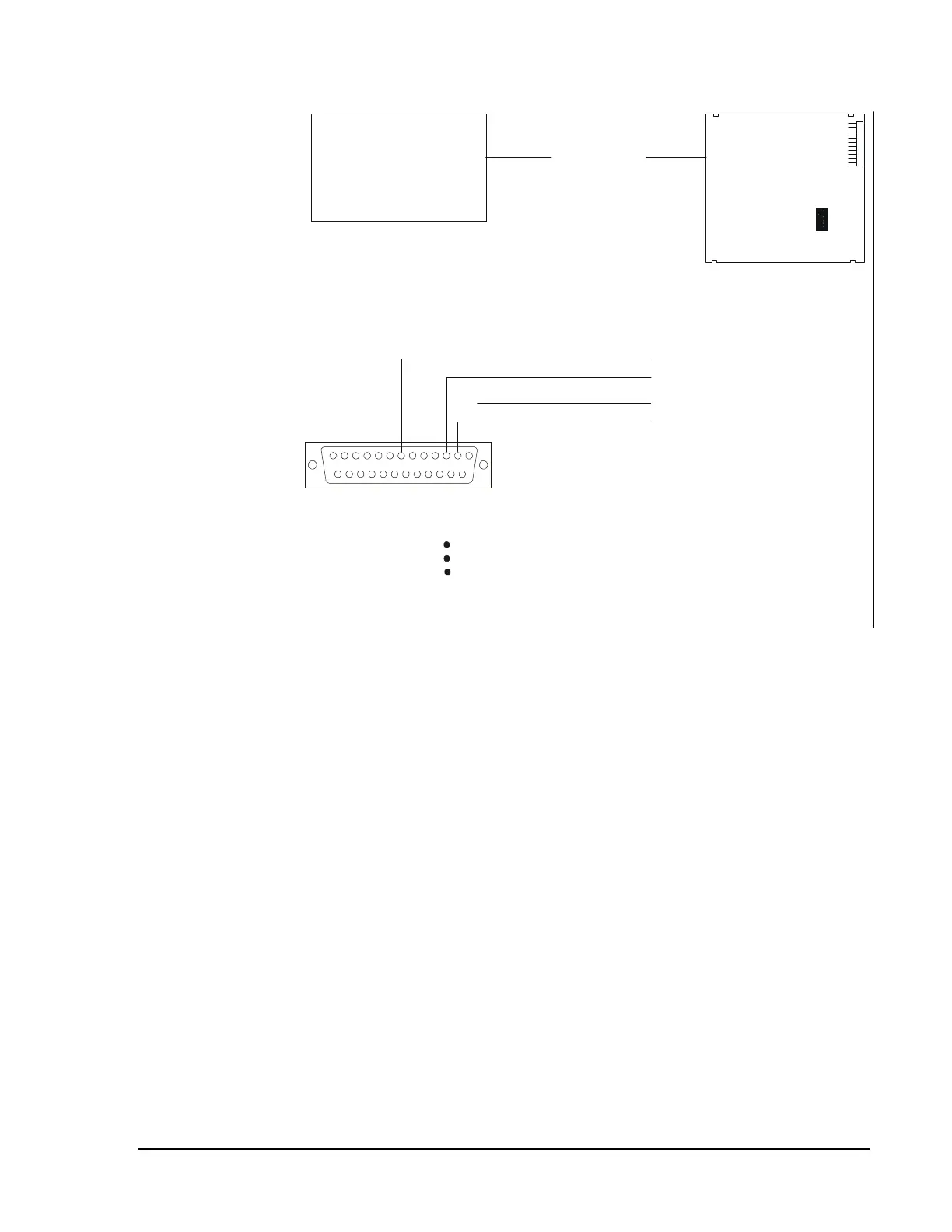

Figure 82: Remote Printer to SIB Connections
