Johnson Controls IFC-1010 User Manual

Hardware Installation—Installing the IFC-1010/2020
19
drlock
Open
Locked
Install
Lock Here

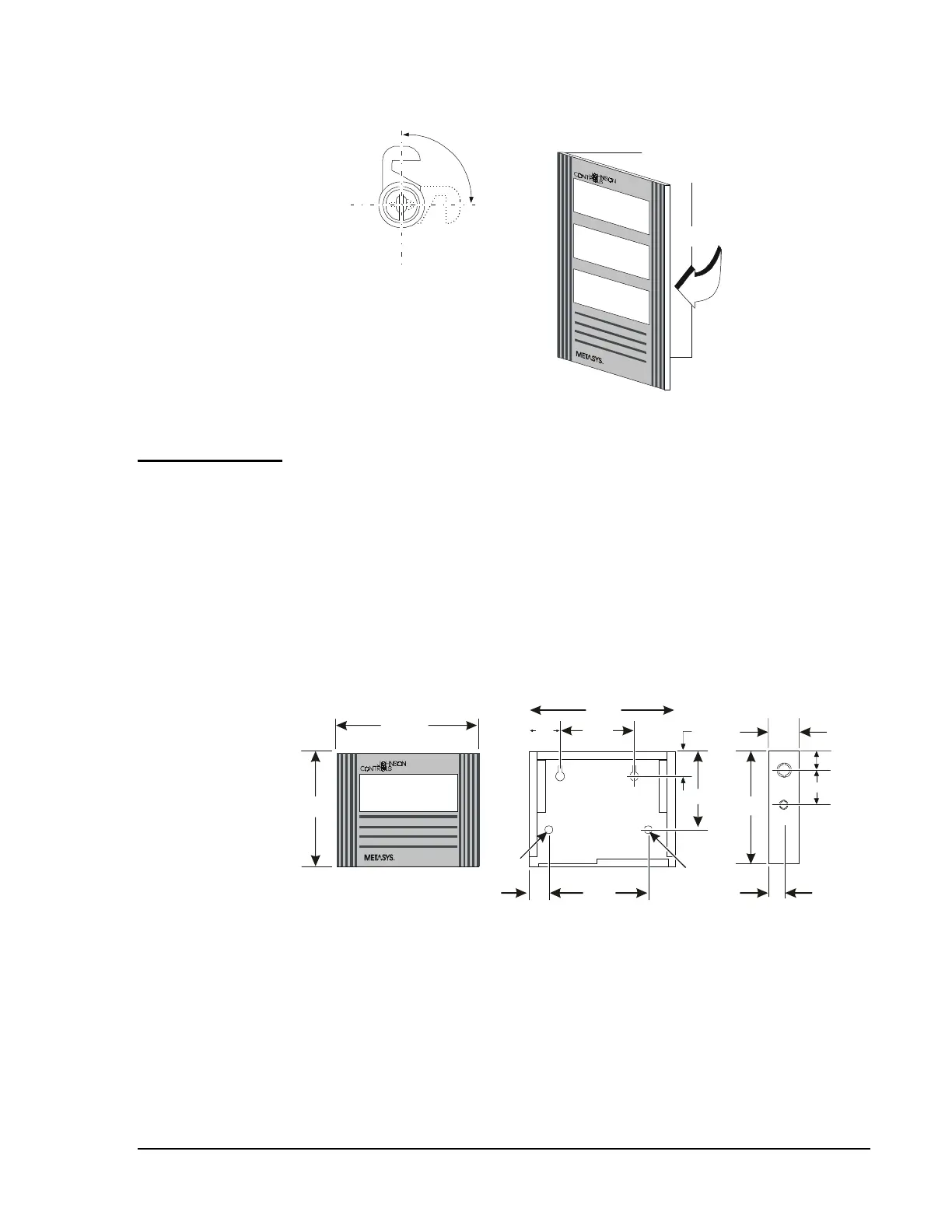

The lock mechanism as viewed in a
left-hinged mounting application.
The lock world be placed in the
right side of the door
(as shown below).
Figure 6: Mounting the Lock
The CAB-A3 is the cabinet and door assembly for one mounting tier.
N9
An optional TR-A3 trim ring is available for use with the A-size cabinet
(24.125 in. width by 20.125 in. height). The following replacement parts
are available:
• DR-A3 door
• SBB-A3 backbox
24.125
20.125
24.00
19.502.250
4.0 16.00
11.281
1.625
0.3125
diameter
0.3125
diameter
20.00
2.060
8.625
2.562
5.218
caba3
Figure 7: CAB-A3
N32
CAB-3 Series
Backboxes
CAB-A3
