Hardware Installation—Installing the IFC-1010/2020
17
!
CAUTION: Unless you are familiar with the placement of
components within this backbox, use only the
knockout locations provided for conduit entry.
N5
Hinges can be either left or right mounted. The illustrations and text depict
a left-mount example. For right mounting, simply substitute right for left
in the instructions.
1. Insert door hinges (A) into the top and bottom slots of the side to be
hinged (in this case the left side). Secure the hinges to the studs in the
backbox with the nuts provided. Note that the small hole on the outer
tab faces outward.
2. Thread stud (B) into the bottom hinge first. Thread from the bottom
up. Place the grounding star washer on the stud. Place the door’s
lower corner onto this stud. Placing the door on the lower stud first
provides a place for the door to rest while completing the assembly.
3. Align the door on the backbox, so that the door sits directly under the
top hinge. Thread remaining stud (B) into the top hinge and through
the hole in the top of the door. The door should now swing freely.
doorasy1
Top Left
Corner
Small Hole
Faces Outward
A
B

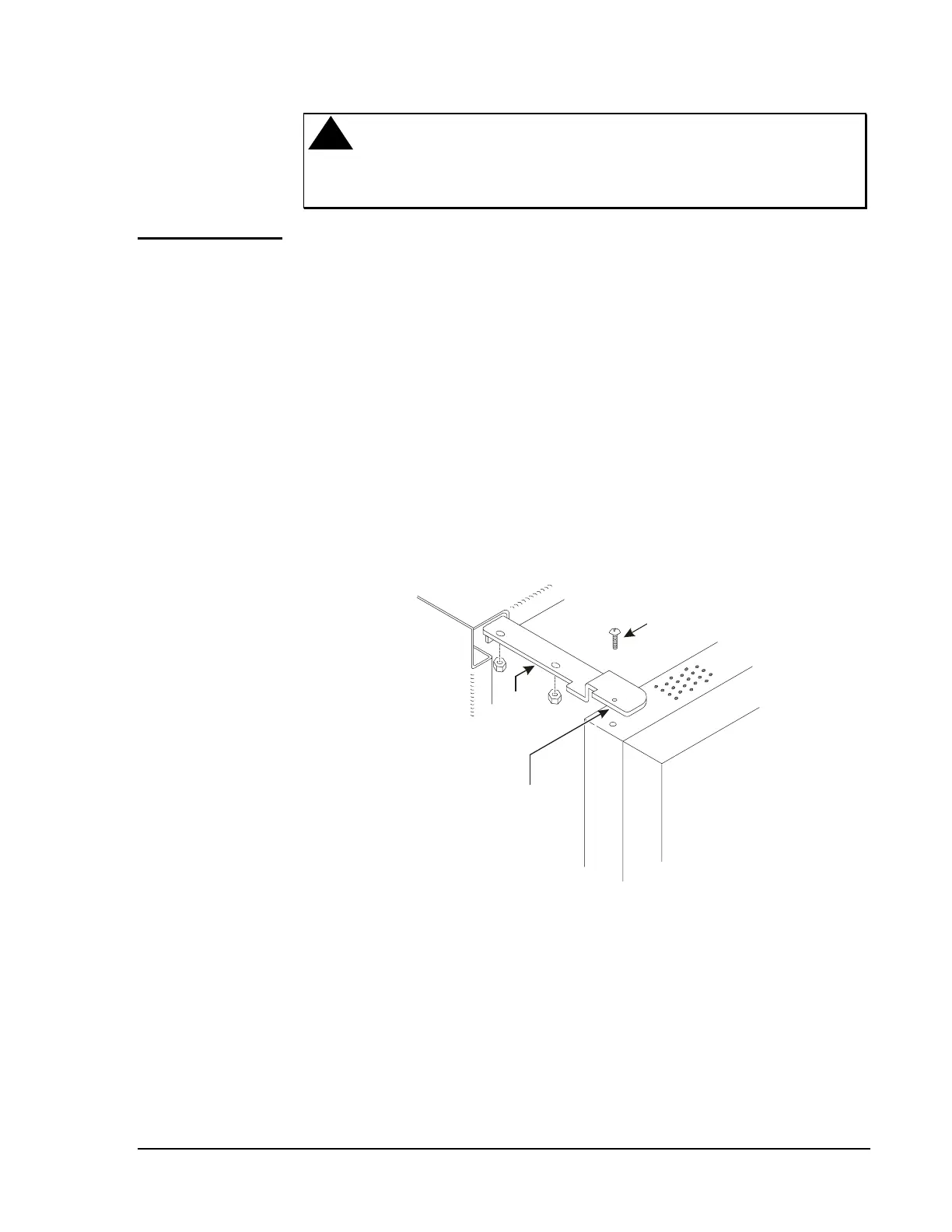

Figure 3: Door Assembly–Top Left Corner
Door Assembly
Instructions
