16
Hardware Installation—Installing the
IFC-1010/2020
On a left mounted door, the Display Interface Assembly (DIA) dress panel
cannot be opened when the door is at less than a 120 degree angle to the
cabinet. If you are using the left mounting option, be sure that the door can
open at least 120 degrees. This is especially important if the cabinet is to
be mounted in a closed area, such as a closet or utility room.
irdoor
Left
Mounted Door
Right
Mounted Door

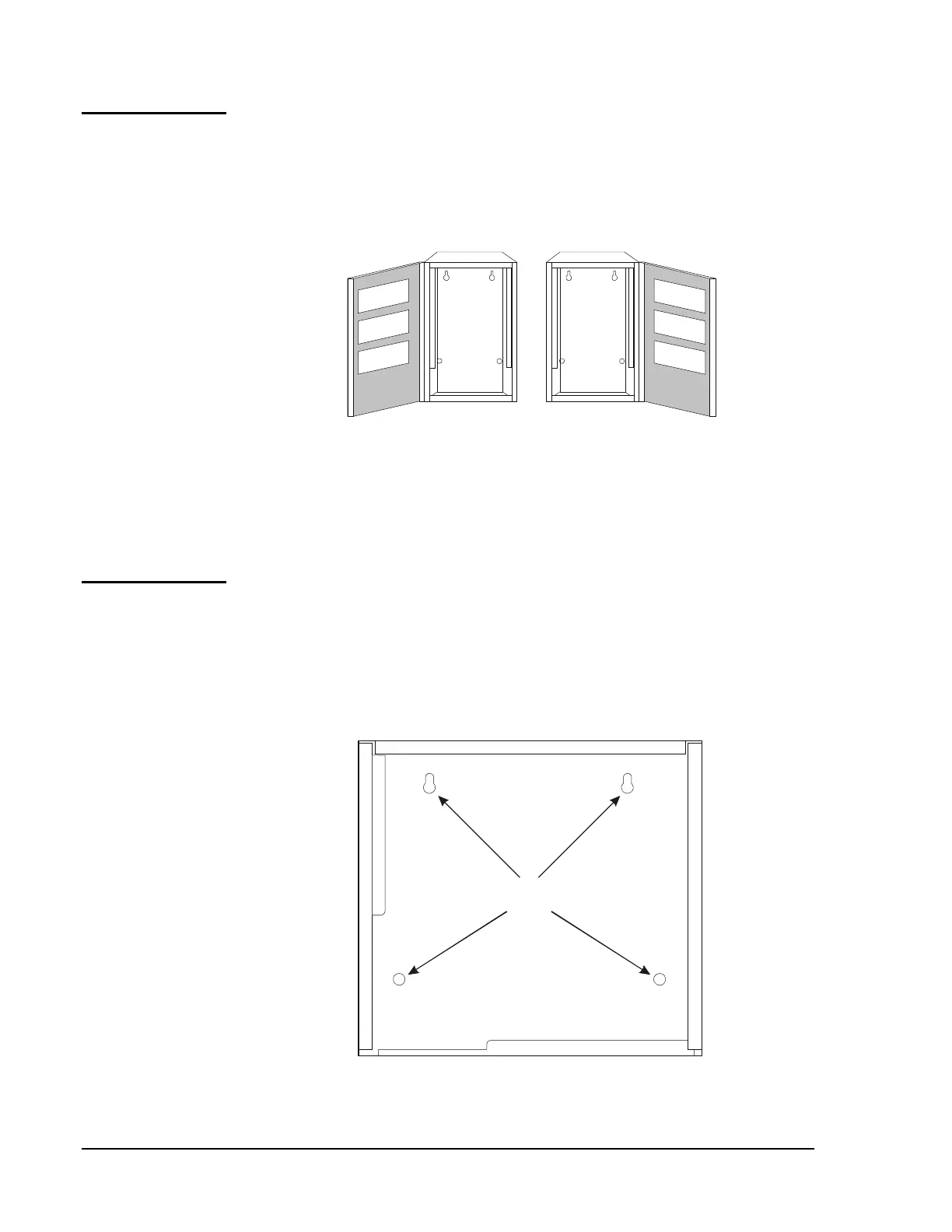

Figure 1: Mounting Cabinet Doors
Note: The two hinges and the two alignment tabs should be attached to
the backbox before any equipment is mounted in the backbox.
N4
The cabinet may be either surface mounted or semi-flush mounted (refer to
Figure 2). Mount the cabinet in a clean, dry, vibration-free area, using the
four holes provided in the back surface of the backbox. Locate the cabinet
so that the top edge is 66 inches above the surface of the finished floor.
This procedure places the center of the control panel keypad 60 inches
above the finished floor.
Cabinet
Mounting
Holes
backmnt
Figure 2: Cabinet Backbox Mount
Left Mount
Mounting the
Backbox
