Hardware Installation—Installing the IFC-1010/2020
127
PRN
Uninterruptable Power Supply
UL Listed for Fire Protective Signaling
Must be supervised by control panel.
Control Module (M5XCJ) programmed for
software Type TPND. These modules will
be activated for all pending trouble conditions.
These modules are silenced upon
acknowledgement of all troubles.
Multi-Alert Sounders used to signal a pending trouble
condition. Select a sound (via jumper clips) that is
separate and distinct from any alarm signal in the
installation. The sounder must be installed in the same
room as the CRT with keyboard.
CRT with Keyboard
Do remove or lock up keyboard.
not
MA-241
F
I
R
E
MA/SS-241
ependsig

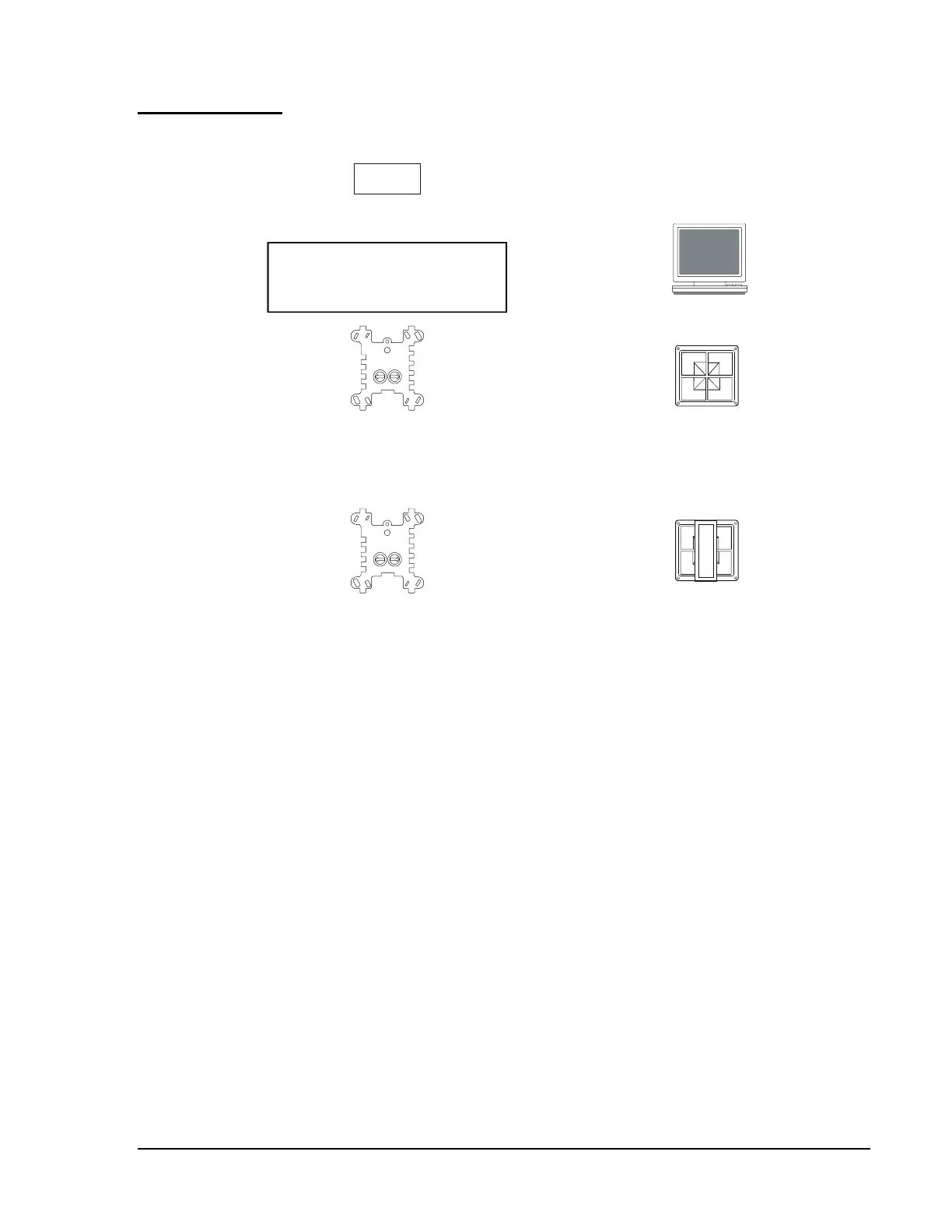

Figure 90: Generating Event-Pending Signals at a Remote Location
Notes:
•
When terminal supervision has been selected, the terminal itself will
beep repeatedly while any state change is awaiting acknowledgment.
•
For field wiring, refer to Figure 66 for power distribution for M5x0CJ
control modules.
•
Any number of the event-pending module types may be used in the
system.
•
If individual signal for alarm and trouble are not desired, one control
module (M5x0CJ) with one output sounder can be used to indicate
both alarm and/or trouble pending. Program this module for software
Type ID GPND.
Generating
Event-Pending
Signals at a
Remote
Location
