20
Hardware Installation—Installing the IFC-1010/2020
The CAB-B3 is the cabinet and door assembly for two mounting tiers.
N9
An optional TR-B3 trim ring is available for use with the B-size cabinet
(24.125 in. width by 28.625 in. height). The following replacement parts
are available: DR-B3 door and SBB-B3 backbox.
24.125
28.625
24.00
19.502.250
4.0 16.00
19.781
1.625
28.50
2.060
8.625
8.625
2.562
5.218
cabb3
0.3125
diameter
0.3125
diameter

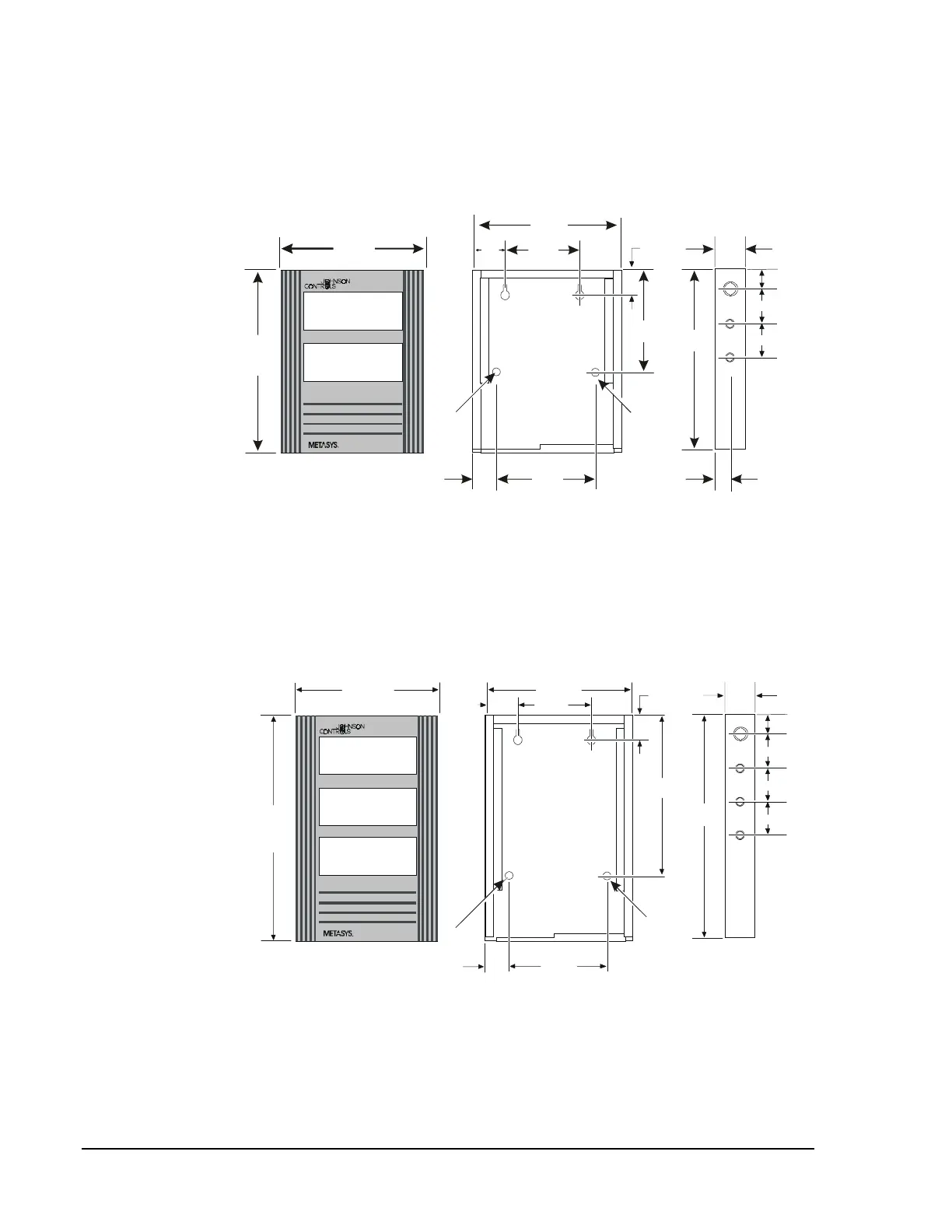

Figure 8: CAB-B3
N32
The CAB-C3 is the cabinet and door assembly for two mounting tiers.
N9
An optional TR-C3 trim ring is available for use with the C-size cabinet
(24.125 in. width by 37.250 in. height). The following replacement parts
are available: DR-C3 door and SBB-C3 backbox.
24.125
37.250
24.00
4 .0
16.00
28.404
37.125
2.060
8.625
8.625
8.625
1.625 5.218
cabc3
19.50
2.250
0.3125
diameter
0.3125
diameter
Figure 9: CAB-C3
N32
CAB-B3
CAB-C3
