98
Hardware Installation—Installing the
IFC-1010/2020
The BGX-101L is an addressable manual pull station with a keylock reset
feature (refer to Figure 70).
PUSH IN
THEN
PULL DOWN
pullstn

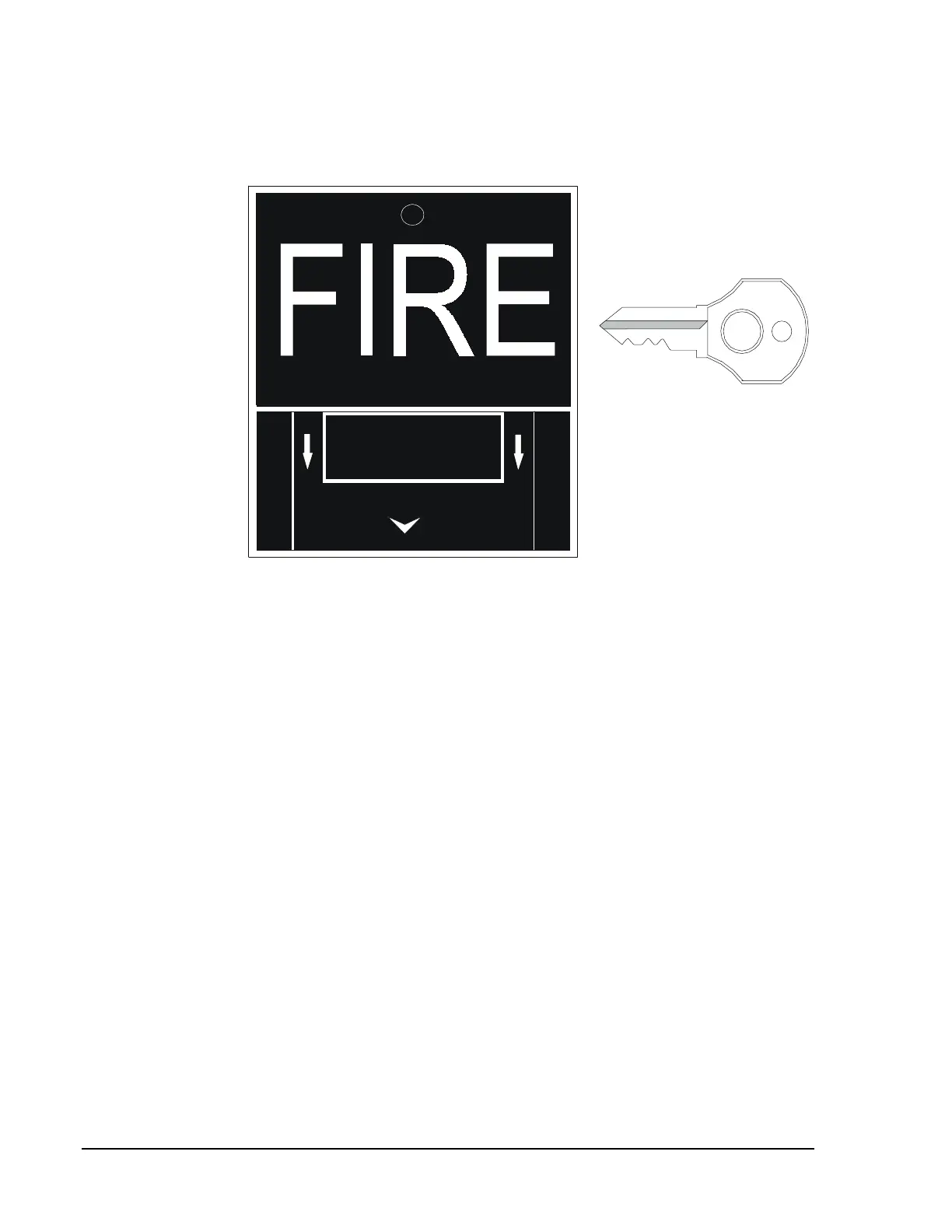

Figure 70: Addressable Manual Pull Station
Addressable
Manual Pull
Station
