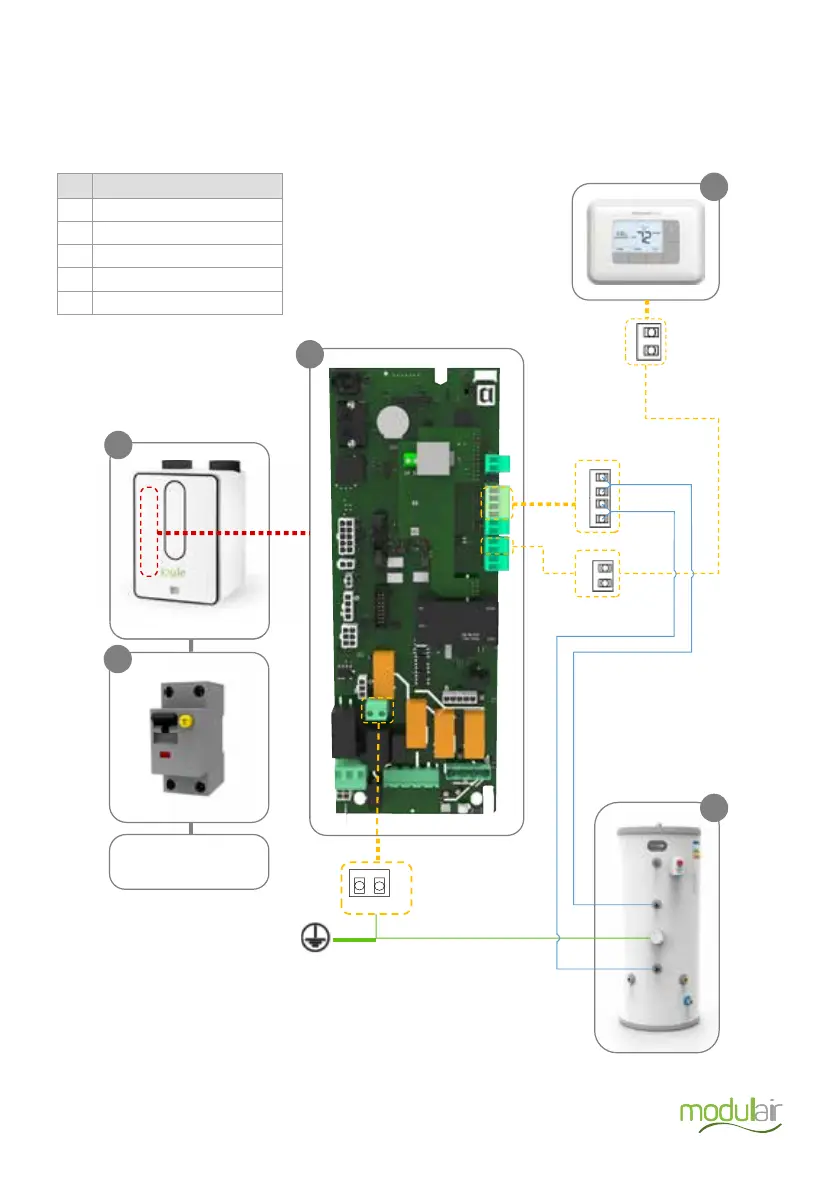

Additional Electrical Schematic
Modul-AIR All-E - 1 DHW & 1 Radiator Zone
Description
A Modul-AIR PCB
B Modul-AIR Heat Pump
C Hot Water Tank
D Opentherm Thermostat
E Suitably Sized RCBO
* Terminals 6,5 & 4,3 of connector P6 and 4,3 of P12 are polarity insensitive.
I mmersion
Heater
B
A
TopS
enso
r
Bo tt
om
Sens
or
C
D
T
T
Tank Sensor
s
P6
6
5
4
3
OT Thermostat
4
3
P1 2
1 ( N ) 2 ( L )
P16
1 Ph
220-240Vac, 50Hz
32 Amp
s
Power Supply
E
