29Modul-AIR Exhaust Air Heat Pump Installation Guide
Mounting the Modul-AIR
The required method for mounting the Modul-AIR unit is to directly hang the unit on a wall. If the wall is not
capable of holding the weight of the unit, details of how to build the wall up appropriately are shown in the
Wall Build Up section below.
There are no other mounting options that will comply with Joules manufacturing and supply warranty, any
possible attempt to do so would void Joules statutory responsibilities.
Wall Mounting
The Modul-AIR can only be hung on a smooth
flat wall capable of holding a mass of 200kg/
m
2
. If the wall mass is lower than this, ensure
the recommended wall build-up is adhered
to. The Modul-AIR should always be hung level
however there is a permitted tolerance of 2°. If
there are any concerns relating to the correct
wall build-up, please contact joule directly
before installation.

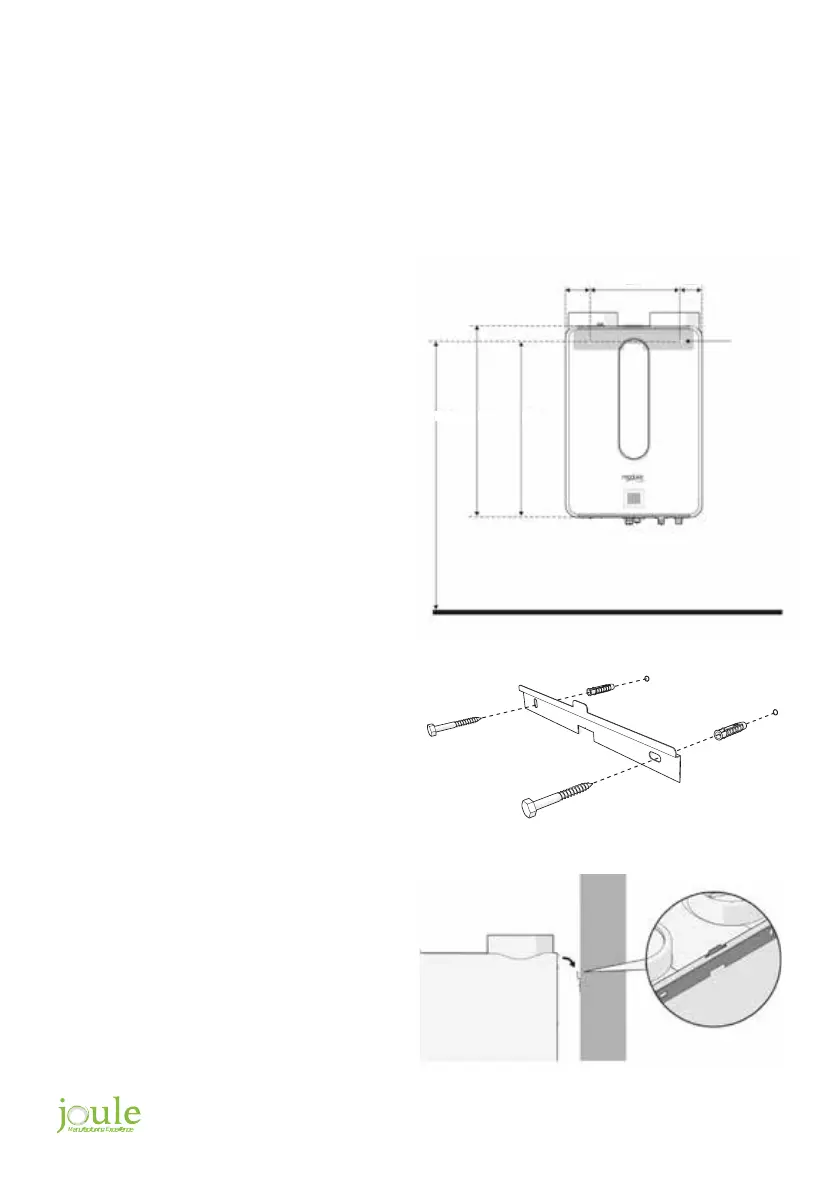

1. Measure and mark positions for pilot
holes based on the dimensions displayed
here.
2. Mount the wall bracket using the supplied
screws and plugs or suitable alternatives.
3. Hang the Modul-AIR on the wall bracket.
Ensure the tab protrudes from the top
of the unit, this is evidence the unit has
engaged the bracket fully.
4. The use of vibration dampening pads
is recommended to adjust the unit
mounting if the wall is not completely flat.
90mm
670mm700mm
min.
820mm
suspension
bracket
90mm320mm
