31Modul-AIR Exhaust Air Heat Pump Installation Guide

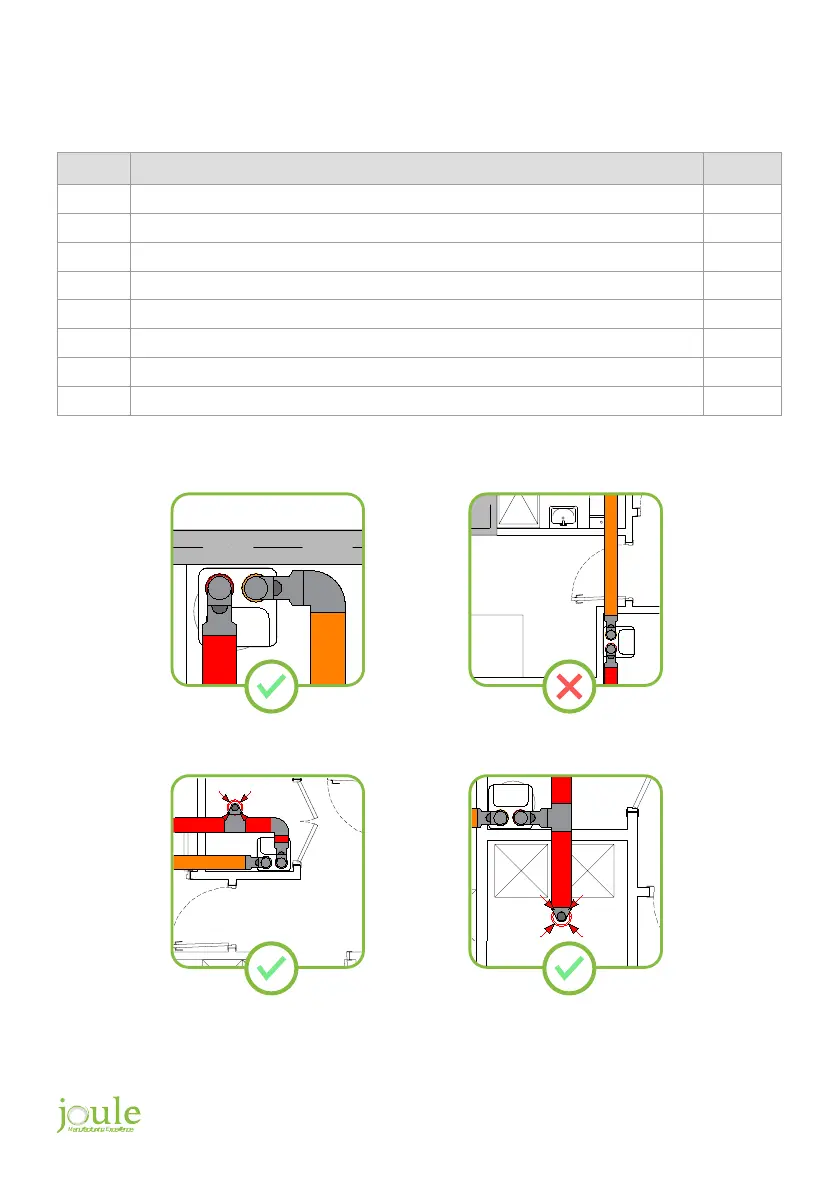

Wall Build Up Detail
Modul-AIR Concrete/Block Wall Build-up
Item Description Qty.
1 Block Wall 1
2 Concrete Floor Slab 1
3 Standard Wall Finish 1
4 Wallplugs 2
5 Modul-AIR 1
6 Modul-AIR Wall Bracket 1
7 Metal Stud Wall 1
8 Heavy Hex Flange Screw, M8 X 80 2
EX
Modul-AIR
220/90
BEND
H-90°
Solid External Party Wall
Internal Wall Adjoining Hallway Internal Wall Adjoining Utility
Internal Wall Adjoining Bedroom
Modul-AIR
EXHAUST 220/90 X 2M DUCT
STORE
BEDROOM
EX
220/90 X 2M DUCT
Modul-AIR
220/90
BEND
H-90°
STORE
HALLWAY
T-PIECE
220/90
220/90
125Ø
EXTRACT
VALVE
Modul-AIR
T-PIECE
220/90
220/90
125Ø
EXTRACT
VALVE
STORE
UTILITY
