65Modul-AIR Exhaust Air Heat Pump Installation Guide
Green Comfort
Green Comfort Electrical Overview

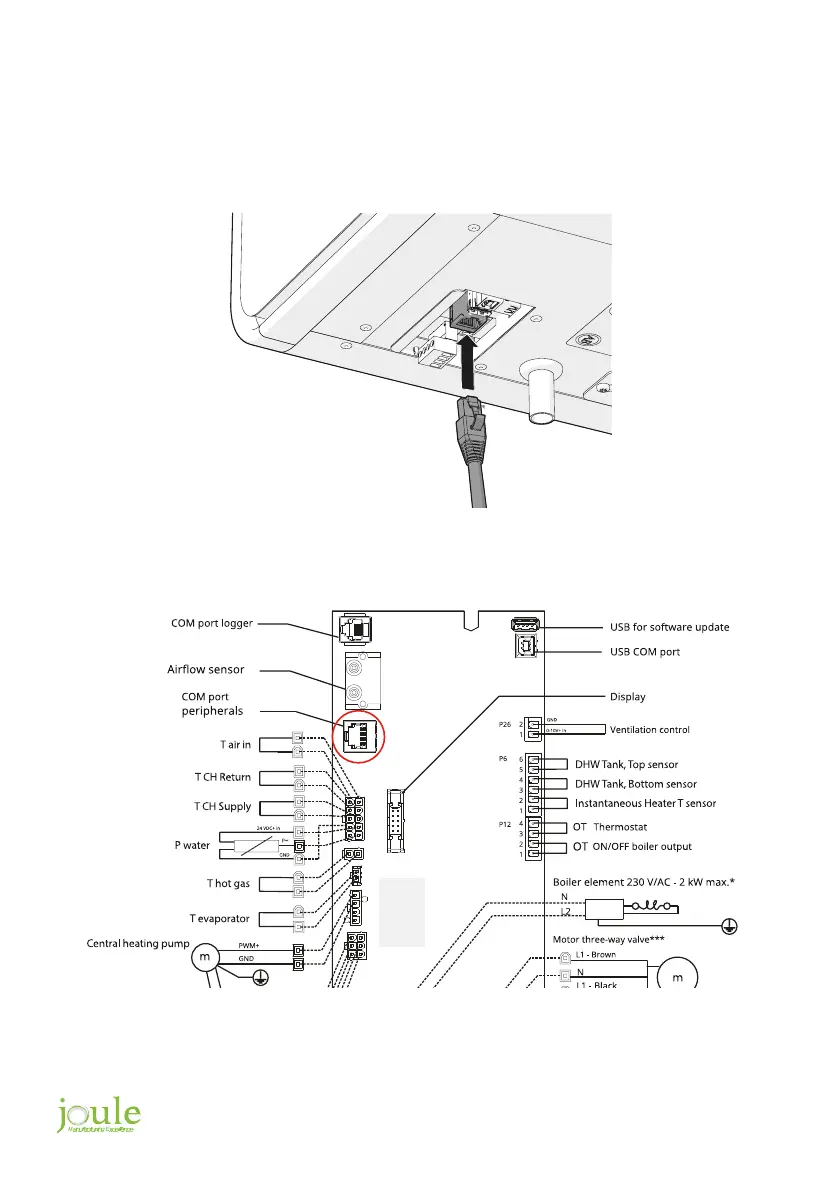

The Green Comfort must be connected to the Modul-AIR with the supplied UTP data cable. One end of the
UTP cable is directly plugged into the data port on the bottom side of the Green Comfort Unit.
The other end of the UTP cable is to be fed into the Modul-AIR unit using the entry grommets and plugged
into the COM port on the Modul-AIRs PCB. The exact port is highlighted below:
The Green Comforts power supply cable is a prewired 230V cable with plug on a 3Amp fuse. This can be
plugged directly into a mains socket.
