60 www.jouleuk.co.uk | www.joule.ie

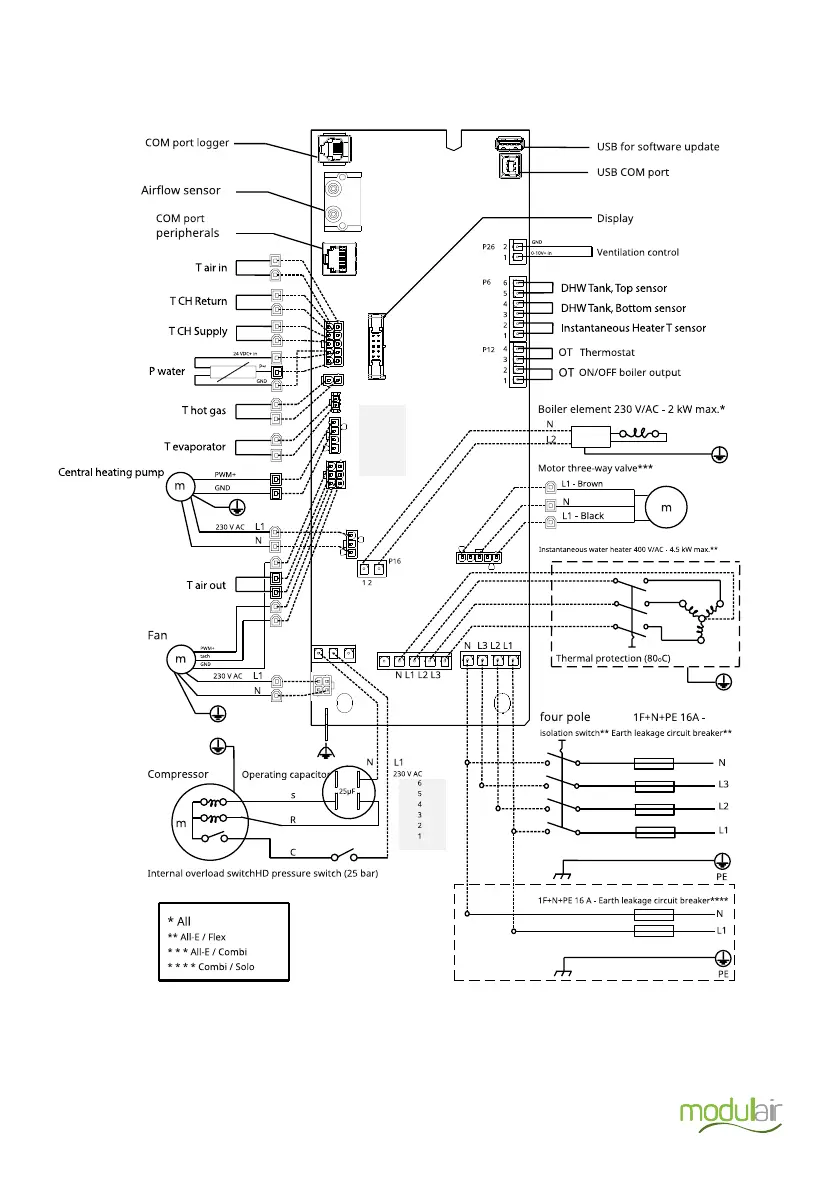

The internal electrical connection layout of the Modul-AIR is shown above.
Modul-AIR Main PCB Board
