13Modul-AIR Exhaust Air Heat Pump Installation Guide
Modul-AIR Variants
Depending on the situation the Modul-AIR can be used in five different variants. This manual is particular
to 2 variants: the All-E and Aqua. Detailed Mechanical and Electrical schematics specific for these can be
found in the Appendices of this installation manual.
The Modul-AIR All-E can heat a house fully electrically and provide hot water via a Joule hot water storage
tank. This variant contains both an integrated electric flow heater and a three-way valve.
The Modul-AIR Aqua is variant for domestic hot water generation in applications where central heating is
already provided for by some other source, e.g electric radiators. The Modul-AIR supplied along with the
immersion in the Joule hot water storage tank can provide fully electric heating to domestic hot water for
your taps and showers.
Modul-AIR Aqua / SoloModul-AIR All-E

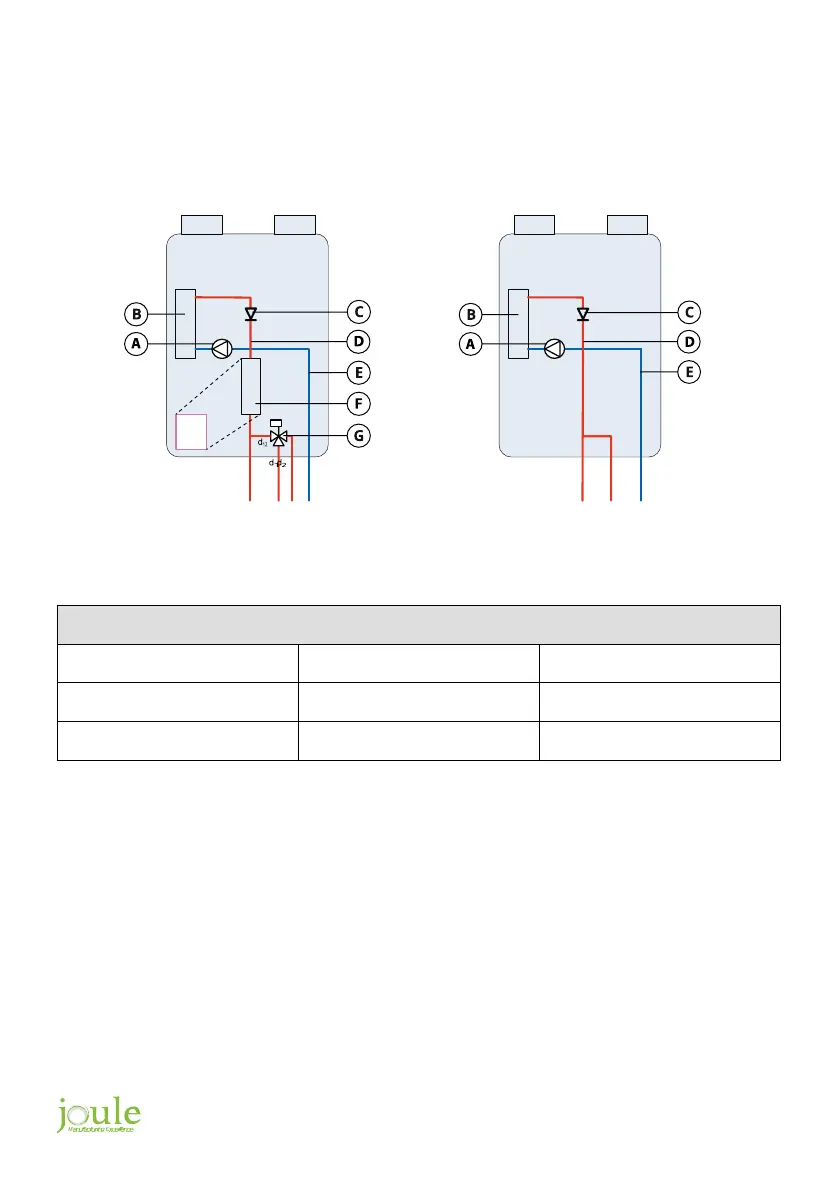

Modul-AIR variant internals
A Circulation Pump D Heating Flow G Three-way Valve
B Condenser E Heating Return
C Check Valve F Back Up Heater
Modul-AIR All-E
Modul-AIR Aqua
